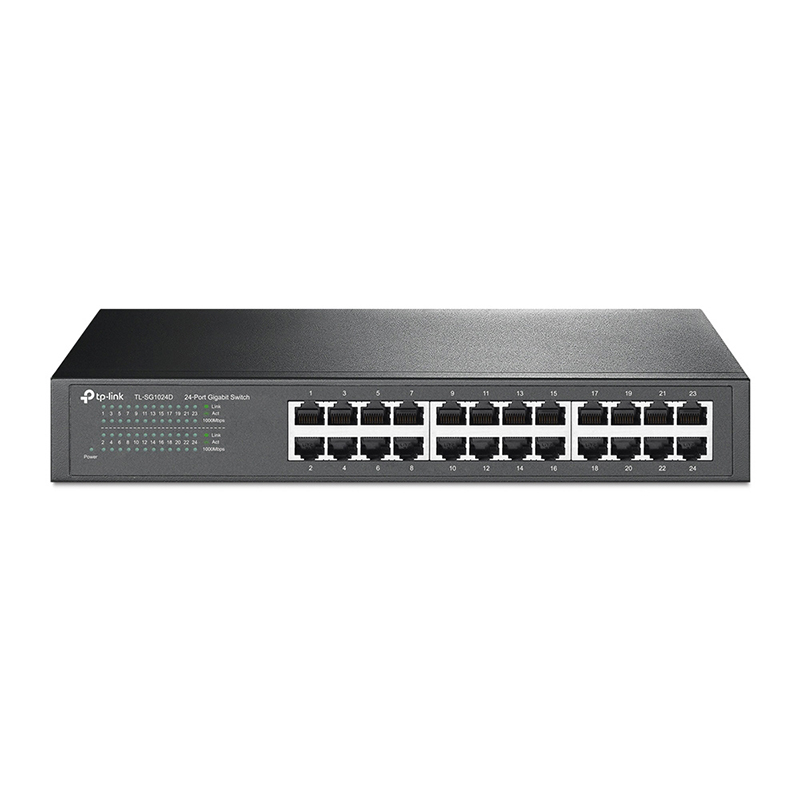

TP-Link 24 Port Gigabit 10/100/1000 Switch Desktop/Rackmount - UN/11.40
The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve the old network to a 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, most of the packaging material can be recycled.

High Performance

All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire speed for maximum throughput. With a 10KB Jumbo frame, the performance of large file transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use

The auto features of this gigabit switch make installation plug-and-play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.




SPECIFICATIONS:

HARDWARE FEATURES


Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface

24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media

10BASE-T:   UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

No

Power Supply

100-240VAC, 50/60Hz

Dimensions ( W x D x H )

11.6*7.1*1.7 in. (294*180*44 mm)

Mounting

Rack Mountable

Max. Power Consumption

13.62W(220V/50Hz)

Max. Heat Dissipation

46.44BTU/h

PERFORMANCE


Switching Capacity

48Gbps

Packet Forwarding Rate

35.7Mpps

MAC Address Table

8K

Advanced Features

• Isolation Mode: Ports 1-22

• Loop Prevention: Ports 1-24

Jumbo Frame

10KB

Green Technology

Yes

Transmission Method

Store-and-Forward

OTHERS


Certification

FCC, CE, RoHS

Package Content

24-Port Gigabit Desktop/Rackmount Switch

Power Cord

Installation Guide

Rackmount Kits

Rubber Feet

Environment

Operating Temperature: 0~40 (32~104);

Storage Temperature: -40~70 (-40~158);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing




  • Product Name:
    TP-Link 24 Port Gigabit 10/100/1000Mbps Switch Desktop/Rackmount - UN/11.40 (TL-SG1024D UN/11.40)
  • Model Number:
    TL-SG1024D UN/11.40
  • Brand:
  • Warranty Period:
    5 Year
