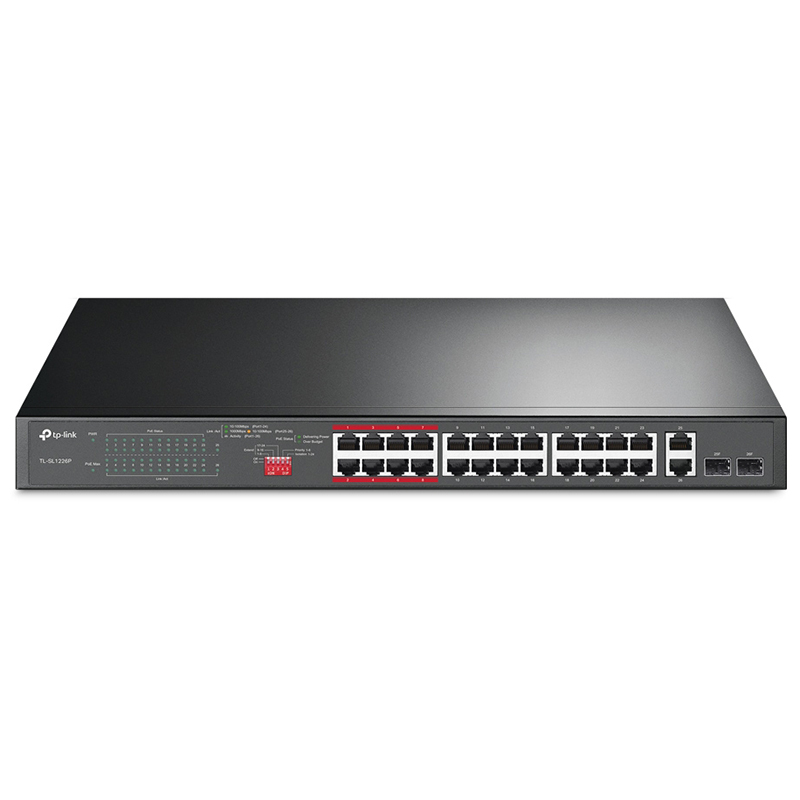

TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch - UN/5.40 (TL-SL1226P UN/5.40)

Interface

24× PoE+ 10/100 Mbps RJ45 Ports

2× 10/100/1000 Mbps RJ45 Ports

2× Combo Gigabit SFP Slots

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity

2 Fans

Physical Security Lock

Yes

Power Supply

100-240 VAC, 50/60 Hz

Packet Forwarding Rate

6.54 Mpps

PoE Ports (RJ45)

Standard: 802.3at/802.3af compliant

PoE Ports: Port 1 – Port 24

PoE Power Budget: 250 W

Mac Address Table

8 K

Jumbo Frame

10 KB

Switching Capacity

8.8 Gbps

Dimensions ( W x D x H )

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Max. Power Consumption

14.81 W (220/50 Hz. no PD connected)

302.88 W (220/50 Hz. with 250 W PD connected)

Max. Heat Dissipation

50.35 BTU/h (no PD connected)

1029.79 BTU/h (with 250 W PD connected)

SOFTWARE FEATURES

Advanced Features

Compatible With IEEE 802.3at/af Compliant PDs

Extend Mode (Up to 250m PoE power supply and data transmission)

Priority Mode (Ports 1-8)

Isolation Mode (Ports 1-24)

PoE Auto Recovery (Ports 1-24)

PD Detection

Intelligent Power Supply

Mac Address Auto-Learning and Auto-Aging

IEEE802.3x Flow Control

Transmission Method

Store-And-Forward

OTHERS

Certification

CE, FCC, RoHS

Package Content

TL-SL1226P

Power Cable

Installation Guide

Two mounting brackets and the fittings

Environment

Operating Temperature: 0–50 °C (32–122 °F)

Storage Temperature: -40–70 °C (-40–158 °F)

Operating Humidity: 10–90% non-condensing

Storage Humidity: 5–90% non-condensing

Notes

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
