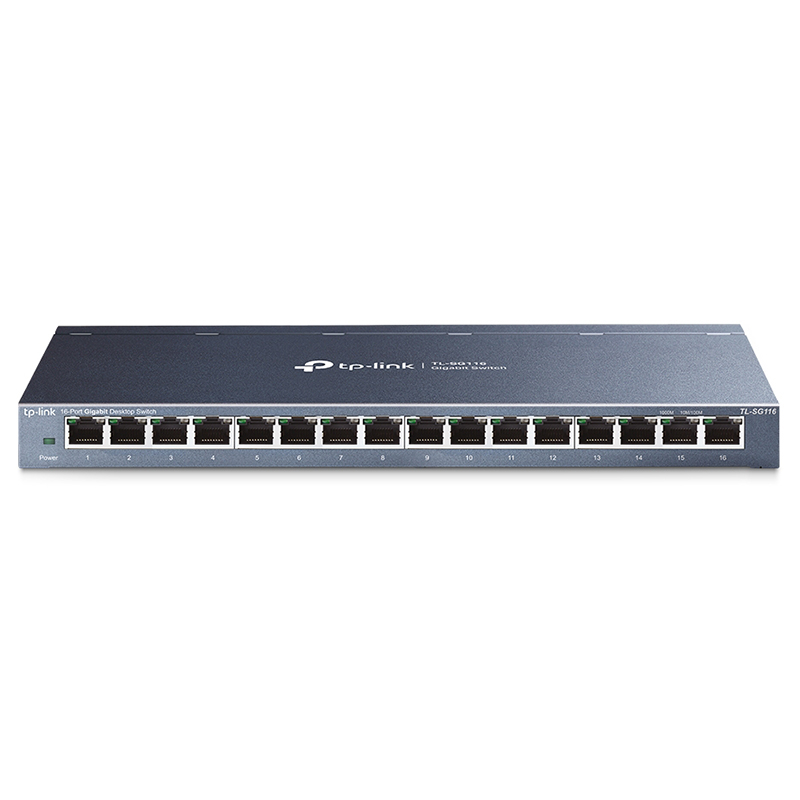

TP-Link 16-Port Gigabit Desktop Switch - UN/2.0 (TL-SG116 UN/2.0)

Standards and Protocols

IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p

Interface

16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter (Output: 12VDC / 1.0A)

LED

System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H )

11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)

Max. Power Consumption

10W(220V/50Hz)

Max. Heat Dissipation

34.12BTU/h

PERFORMANCE

Packet Forwarding Rate

23.8Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1Mb

Jumbo Frame

10KB

SOFTWARE FEATURES

Advanced Features

Green Technology

802.3X Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transmission Method

Store and Forward

OTHERS

Certification

CE, FCC ,RoHS

Package Content

16-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Rubber Feet

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90%, non-condensing

Storage Humidity: 5%~90% non-condensing
