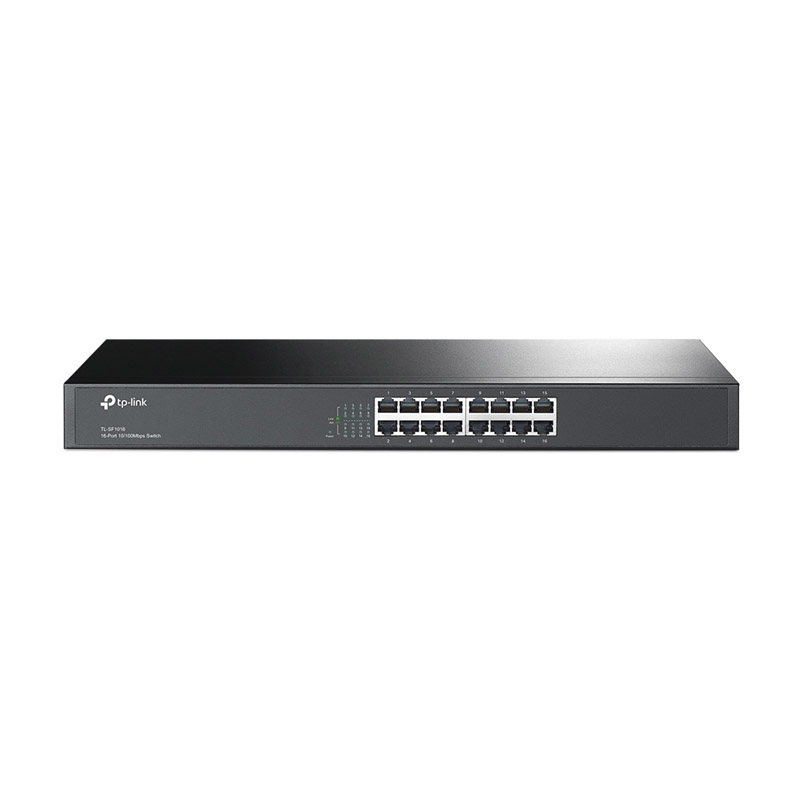

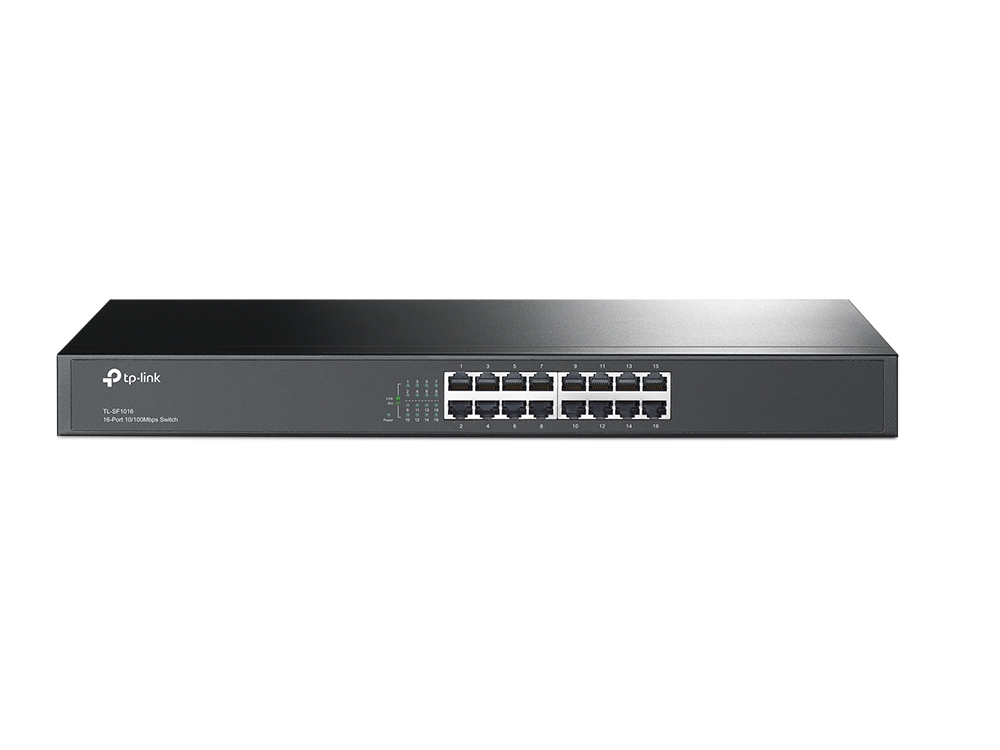

TP-Link 16 Port 10/100 Rack Mountable Switch (TL-SF1016)

16‑port 10/100Mbps rack‑mount switch with auto MDI/MDIX, fanless design, 3.2 Gbps switching capacity, 2.38 Mpps forwarding, 8K MAC table, energy‑efficient (up to 75% power save), 2.1 W max power.

TP-Link 16 Port 10/100 Rack Mountable Switch (TL-SF1016)
  • 12261_thumb_P_1563260033958
  • 12261_thumb_P_1563260051380
  • 12261_thumb_P_1563260051944
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want a stock alert?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    TP-Link 16 Port 10/100 Rack Mountable Switch (TL-SF1016)
  • Model Number:
    TL-SF1016
  • Brand:
  • Warranty Period:
    3 Year

Description

TP-Link 16 Port 10/100 Rack Mountable Switch


The 16-Port 10/100Mbps Rackmount Switch TL-SF1016 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.


  • 16 10/100Mbps RJ45 ports

  • Innovative energy-efficient technology saves power up to 75%

  • Supports MAC address self-learning and auto MDI/MDIX

  • Standard 19-inch rack-mountable steel case

TP-Link 16 Port 10/100 Rack Mountable Switch (TL-SF1016)

Specifications


HARDWARE FEATURES

STANDARDS AND PROTOCOLS

IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

INTERFACE

16 10/100Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX

NETWORK MEDIA

10BASE-T: UTP category 3, 4, 5 cable (maximum   100m)
  100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

FAN QUANTITY

Fanless

POWER SUPPLY

100-240VAC, 50/60Hz

POWER CONSUMPTION

Maximum: 2.1W

DIMENSIONS ( W X D X H )

17.3*7.1*1.7 in. (440*180*44 mm)

MAX POWER CONSUMPTION

2.06W(220V/50Hz)

MAX HEAT DISSIPATION

7.03BTU/h

PERFORMANCE

SWITCHING CAPACITY

3.2Gbps

PACKET FORWARDING RATE

2.38Mpps

MAC ADDRESS TABLE

8K

BUFFER MEMORY

2Mb

GREEN TECHNOLOGY

Innovative energy-efficient technology saves   power up to 70%

TRANSFER METHOD

Store-and-Forward

OTHERS

CERTIFICATION

FCC, RoHS

PACKAGE CONTENTS

16-Port 10/100Mbps Rackmount Switch
  Power Cord
  Installation Guide
  Rackmount Kit
  Rubber Feet

ENVIRONMENT

Operating Temperature: 0~40   (32~104);
  Storage Temperature: -40
~70   (-40~158);
  Operating Humidity: 10%~90% non-condensing;
  Storage Humidity: 5%~90% non-condensing
