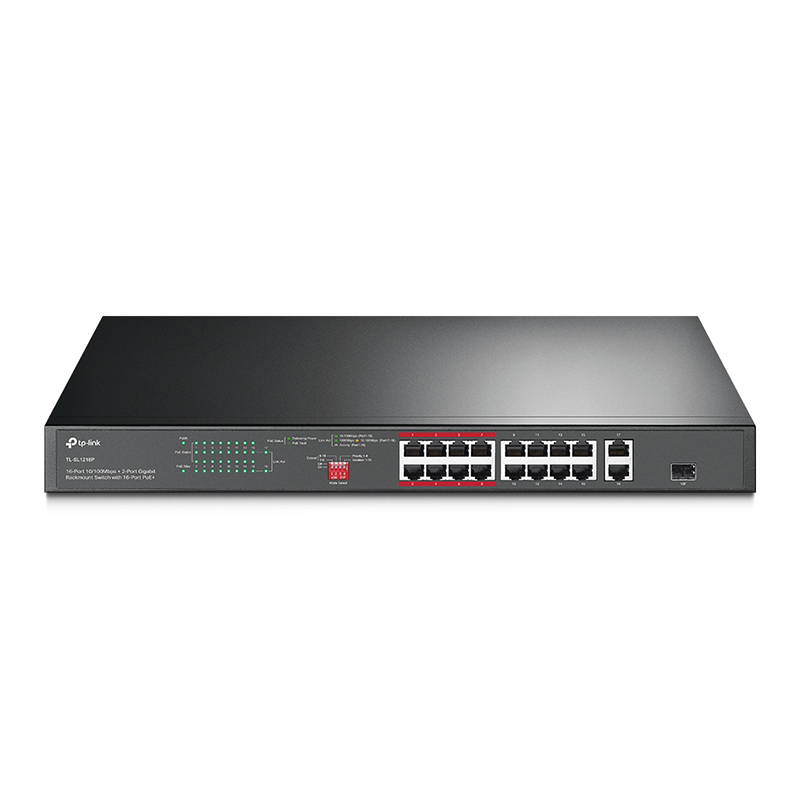

TP-Link 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ - UN/5.40 (TL-SL1218P UN/5.40)

Interface

• 16× PoE+ 10/100 Mbps RJ45 Ports

• 2× 10/100/1000 Mbps RJ45 Ports

• 1× Combo Gigabit SFP Slot

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-X MMF, SMF

Fan Quantity

2 Fans

Physical Security Lock

Yes

Power Supply

100–240V AC, 50/60 Hz

PoE Ports (RJ45)

• Standard: 802.3at/802.3af compliant

• PoE Ports: Ports 1–16

• PoE Power Budget: 150 W

Dimensions ( W x D x H )

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Max. Power Consumption

• 10.75 W (220/50Hz. no PD connected)

• 172.8 W (220/50Hz. with 150 W PD connected)

Max. Heat Dissipation

• 36.55 BTU/h (no PD connected)

• 592.55 BTU/h (with 150 W PD connected)

PERFORMANCE

Jumbo Frame

10 KB

Switching Capacity

7.2 Gbps

Packet Forwarding Rate

5.36 Mpps

MAC Address Table

8 K

SOFTWARE FEATURES

Advanced Features

• Compatible With IEEE 802.3at/af Compliant PDs

• Extend Mode (Up to 250m PoE power supply and data transmission)

• Priority Mode (Ports 1-8)

• Isolation Mode (Ports 1-16)

• PoE Auto Recovery (Ports 1-16)

• Mac Address Auto-Learning And Auto-Aging

• IEEE802.3x Flow Control

Transmission Method

Store-And-Forward

OTHERS

Certification

CE, FCC, RoHS

Package Content

• TL-SL1218P

• Power Cable

• Installation Guide

• Two mounting brackets and the fittings

Environment

• Operating Temperature: 0–50 °C (32–122 °F)

• Storage Temperature: -40–70 °C (-40–158 °F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
