SPECIFICATIONS:
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
Interface
9× 10/100/1000 Mbps RJ45 Ports
1× 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
Fan Quantity
Fanless
Power Supply
External Power Adapter (Output: 53.5 VDC/2.43 A)
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 W
Dimensions ( W x D x H )
8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max. Power Consumption
7.66 W (220V / 50Hz with no PD connected)
141.54 W (220V / 50Hz with 123 W PD connected)
Max. Heat Dissipation
26.12 BTU/h (220V / 50Hz with no PD connected)
482.65 BTU/h (220V / 50Hz with 123 W PD connected)
PERFORMANCE
Jumbo Frame
16 KB
Switching Capacity
20 Gbps
Packet Forwarding Rate
14.88 Mpps
MAC Address Table
4 K
SOFTWARE FEATURES
Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
PoE
Extend Mode**
PoE Auto Recovery
Management Features
Web-based GUI
Easy Smart Configuration Utility
Transmission Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Content

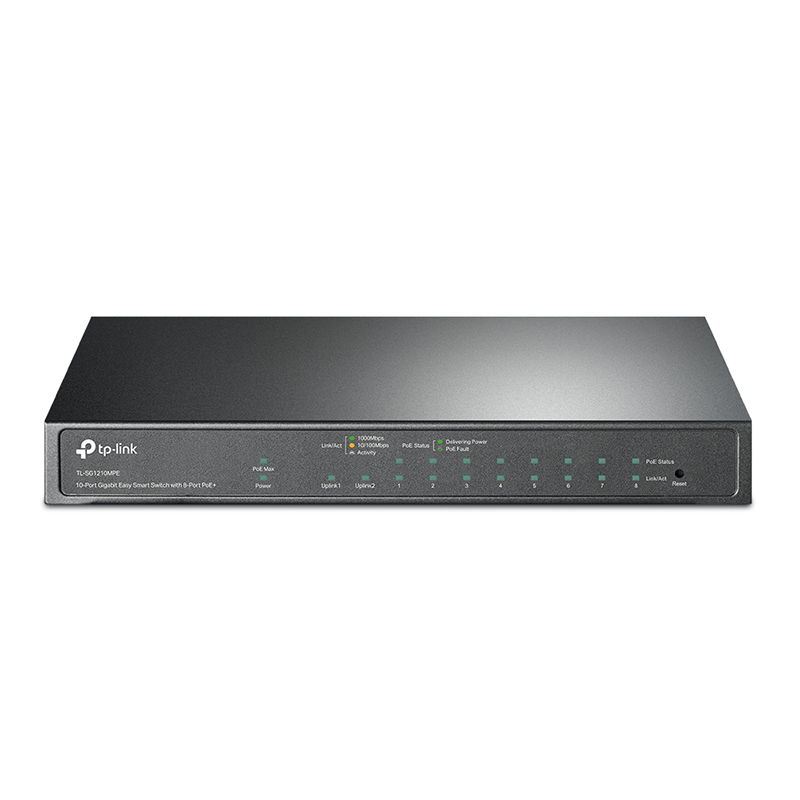

TL-SG1210MPE
Power Adapter
Installation Guide
Rubber Feet
System Requirements
Microsoft® Windows® for running Utility
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
