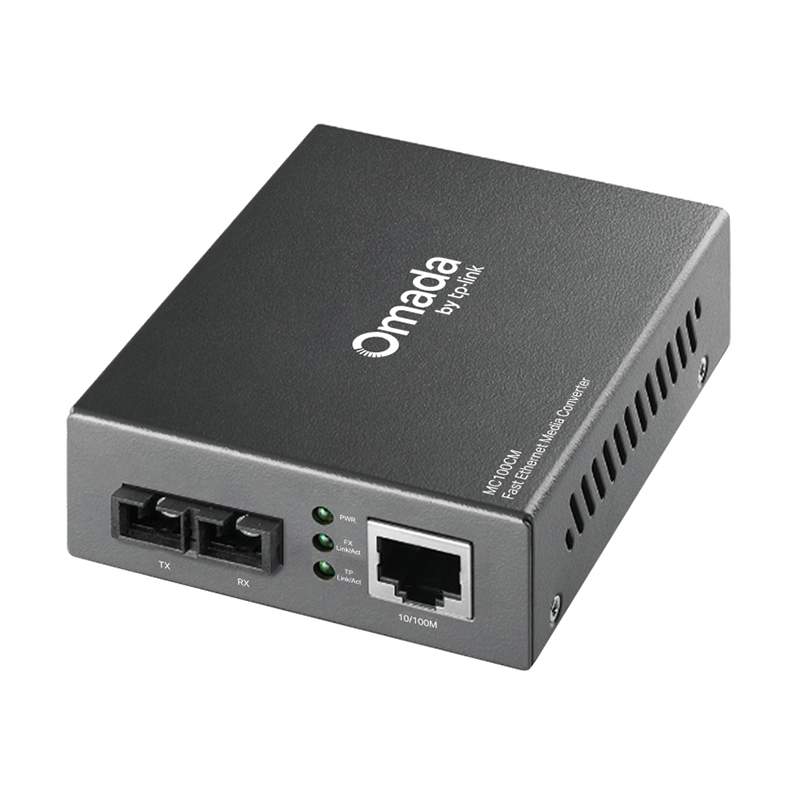

TP-Link 10/100M RJ45 to 100M Multi-mode SC Fiber Converter - UN/6.30 (MC100CM UN/6.30)

TP‑Link MC100CM media converter: 100BASE‑FX to 100BASE‑TX, 2× 100M SC/UPC, 1× 10/100M RJ45 (Auto‑MDI/MDIX), 1310 nm LX laser, up to 2 km multimode, auto‑negotiates duplex, 9 V/0.6 A, 1.19 W max.

TP-Link 10/100M RJ45 to 100M Multi-mode SC Fiber Converter - UN/6.30 (MC100CM UN/6.30)
  • Fiber-Convertor-TP-Link-10-100M-RJ45-to-100M-Multi-mode-SC-Fiber-Converter-UN-6-30-MC100CM-UN-6-30-2
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want a stock alert?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post In Stock
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 In Stock
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 In Stock

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

TP-Link 10/100M RJ45 to 100M Multi-mode SC Fiber Converter - UN/6.30
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.





SPECIFICATIONS:

Standards and Protocols

IEEE802.3i, IEEE802.3u

Basic Function

• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Full Duplex Flow Control (IEEE 802.3x)
• Half Duplex Flow Control (Backpressure)
• Extends fiber distance up to 2km

Interface

• 2× 100M SC/UPC ports
• 1× 10/100M RJ45 port (Auto MDI/MDIX)

Wave Length

1310nm

Network Media 10BASE-T

2-pair UTP/STP of Cat. 3 or above (≤100m)

Network Media 100BASE-T

2-pair UTP/STP of Cat. 5 or above (≤100m)

Dimensions ( W x D x H )

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply

9V/0.6A

Max. Power Consumption

1.19W

LED

PWR, FX Link/Act, TP Link/Act

Safety & Emission

FCC, CE, RoHS

Package Content

• MC100CM
• Power Adapter
• Installation Guide

Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing




  • Product Name:
    TP-Link 10/100M RJ45 to 100M Multi-mode SC Fiber Converter - UN/6.30 (MC100CM UN/6.30)
  • Model Number:
    MC100CM UN/6.30
  • Brand:
    TP-Link TP-Link
  • Warranty Period:
    3 Year
