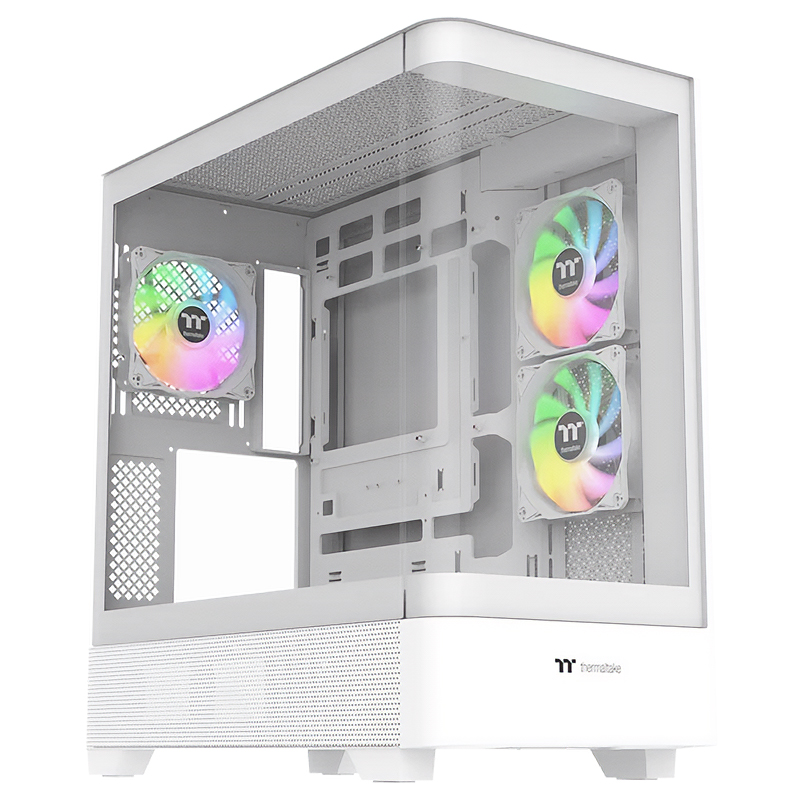

Thermaltake View 290 Curved TG ARGB Mid Tower ATX Case - Snow (CA-11G-00M6WN-00)

Case type

Mid Tower

Dimension (H X W X D)

497 x 242 x 477mm

(19.57x 9.53 x 18.78inch)

Panel

4mm Curved TG Front Panel x1 / 3mm Tempered Glass x 1

Color

White

Material

SPCC

Cooling system

Right(intake):

120 x 120 x 25 mm ARGB Lite white Reverse fan (1000±200rpm, 21.9 dBA)   x 2

Rear(exhaust):

120 x 120 x 25 mm ARGB Lite white fan (1000±200rpm, 22.3 dBA) x 1

Drive bays

2 x 3.5”or 2 x 2.5”

Expansion slots

7(Rotatable Patented Design)

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

Hidden-connector motherboard

9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan support

Top:

3 x 120mm

2 x 140mm

Right:

2 x 120mm

Rear:

1 x 120mm

1 x 140mm

Power Cover:

3 x 120mm

Radiator support

Top Side(AIO) :

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Right Side(AIO):

1 x 240mm, 1 x 120mm

Clearance

CPU cooler height limitation:

180mm

VGA length limitation:

450mm

PSU length limitation:

200mm
