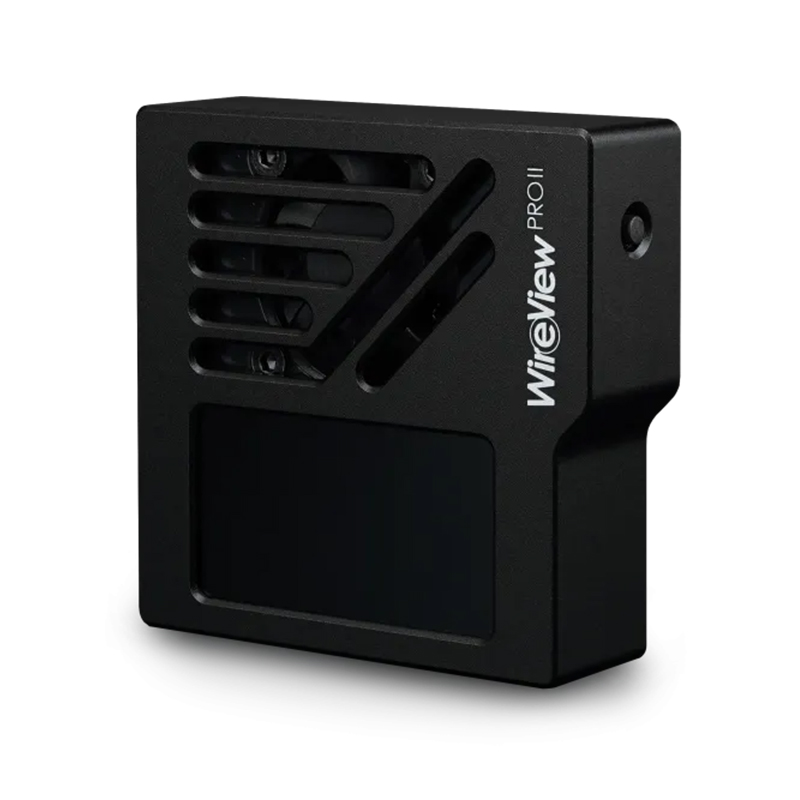

Thermal Grizzly WireView Pro II GPU Monitoring (TG-WV-P2-H19N)

Color

Black

Connector type

2-pin JST PH 1.0mm (motherboard power button), 2x2-pin JST PH 2.0mm (temperature   sensors, 10k NTC, B3435 Standard), 12V-2x6-Pin, USB-C

Display

320x170 pixel TFT-IPS colour display

Material

Aluminum

Measurement tolerance

±4 %

Notes

Before purchasing a WireView Pro II, it should be verified whether the graphics card in use is compatible. To do so, the following steps can be carried out:

Check the compatibility list in the download section of the product page. The compatibility list is designed based on a horizontal installation of the graphics card with the power cable routed toward the bottom of the case.

Using the technical drawing in the download section of the product page, check whether the WireView Pro II is compatible with the graphics card, the case (clearances to the side panel, etc.), and, if applicable, the CPU cooler.

The WireView Pro II is available in two variants. The choice of variant primarily depends on the routing of the power cable from the power supply, as the display on the WireView Pro II can be rotated by 180° in the settings.

Depending on the orientation of the 12VHWPR or 12V-2x6 connector on the graphics card, either the “Normal (N)” or the “Reversed (R)” variant is required to route the power cable toward the graphics card cooler. The description assumes a horizontal installation of the graphics card with the power cable routed toward the bottom of the case.
