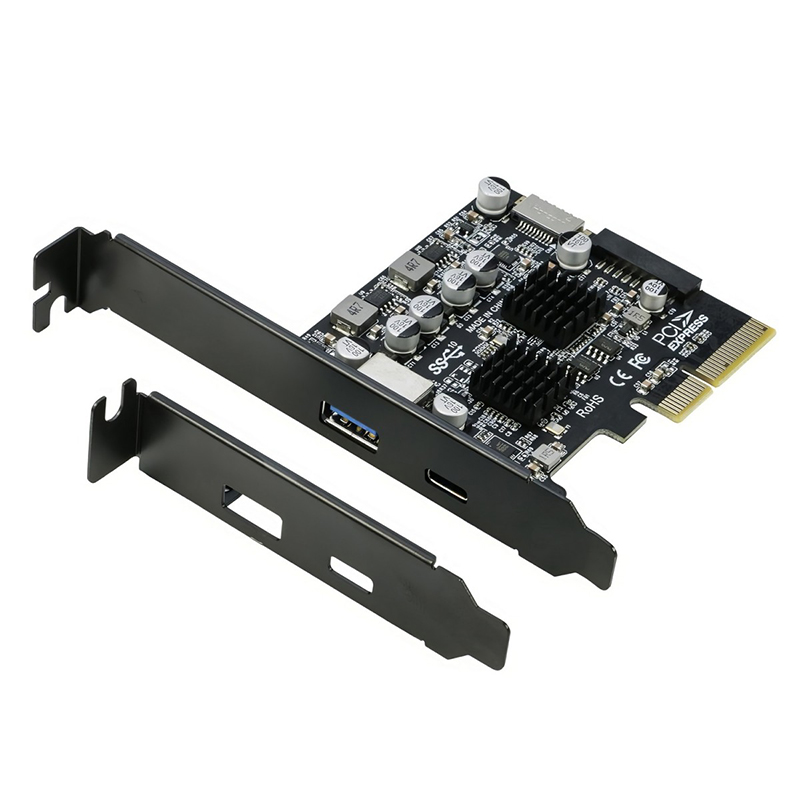

Simplecom PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card (EC315)

Simplecom PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card
EC315 is a PCI Express expansion card designed to provide both external and internal USB connectivity. It features 4x external and internal USB connectors, offering data transfer speeds of up to 10Gbps.

With integrated PCI Express to USB 3.2 Gen 2 controller and USB 3.2 Gen 2 hub controller, this expansion card allows the USB ports on both the rear and front panels to operate simultaneously. The rear panel includes one USB-C and one USB-A port, while there are two internal connectors for front panel, a 19/20-Pin connector for front USB 3.0 port and a Key-A (Type-E) connector for front USB-C port.

Powered directly via PCIe, it requires no external power, and integrated PCIe 12V to 5V modules provide necessary power to the USB ports. It's plug-and-play and easy to install, with automatic installation on Windows systems.

• PCIe x4 expansion card, also compatible with PCIe x8 or x16 slot

• USB 3.2 Gen 2 interface supports data transfer rates of up to 10Gbps

• Integrated PCIe to USB 3.2 Gen 2 controller and USB 3.2 Gen 2 hub controller

• The USB ports on the rear panel and front panel can operate simultaneously

• Two rear panel connectors, 1x USB-C and 1x USB-A port

• Two internal connectors for front panel, USB 3.0 19/20-Pin and Key-A (Type-E) connectors

• Backwards compatible with USB 2.0 and USB 1.1 devices

• Built-in over current protection on each USB port

• Powered by PCIe, no external power required

• Built-in PCIe 12V to 5V modules provide power to USB ports

• Plug and play, automatic installation on Windows

SPECIFICATIONS:
