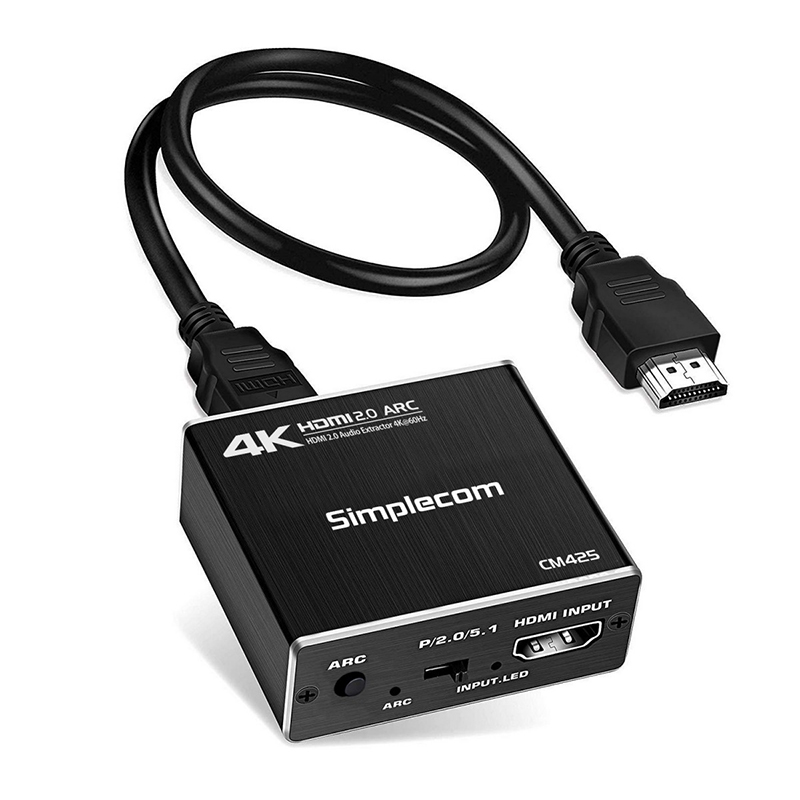

Simplecom HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz (CM425)

Simplecom HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz (CM425)
  • Audio-Cables-Simplecom-HDMI-2-0-Audio-Extractor-Optical-SPDIF-3-5mm-Stereo-with-ARC-4K-60Hz-CM425-10
  • Audio-Cables-Simplecom-HDMI-2-0-Audio-Extractor-Optical-SPDIF-3-5mm-Stereo-with-ARC-4K-60Hz-CM425-8
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post In Stock
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 Instant Pickup
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 At Other Store

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    Simplecom HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz (CM425)
  • Model Number:
    CM425
  • Brand:
    Simplecom Simplecom
  • Warranty Period:
    1 Year

Description

Simplecom CM425 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz
CM425 is an upgraded HDMI 2.0 Audio Extractor, supports video resolution up to 4K@60Hz and audio output through Optical SPDIF or 3.5mm stereo. It also supports ARC (Audio Return Channel), so you can connect it to an ARC compatible TV directly. It’s the ideal solution when you would like to output the audio through an external speaker system with analog or optical input, also when an older audio system without HDMI input.

CM425 enables extracting of embedded audio from HDMI source or extracting of audio from an ARC compatible TV directly, and output audio separately on either an analog stereo audio connector or a digital optical SPDIF connector.

CM425 meets the HDMI 2.0b standards with 18Gbps bandwidth support, which is ideal for home theatre, 4K gaming and video streaming on a 4K TV. This little adapter can be placed behind your AV hardware and powered by USB, which can take power from USB wall charger or an available USB socket on your TV, Media Player or PC.

  • HDMI 2.0b and HDCP 2.2 compliant with 18Gbps bandwidth support

  • Support HDR and video resolution up to 4K@60Hz

  • Convert 1 HDMI input to 1 HDMI + (SPDIF + 3.5mm or R/L) audio output

  • Support ARC (Audio Return Channel) for ARC compatible TV

  • Powered by a USB-C Cable

  • Three Audio Mode: Pass-through, 2CH and 5.1CH

  • Supports compressed audio DTS Digital, Dolby Digital and uncompressed audio PCM, LPCM





SPECIFICATIONS:

HDMI Version

HDMI 2.0b (backwards compatible)

HDMI resolution support

480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz

Input

1x HDMI Input

Audio Outputs

1x SPDIF (Optical), 1 x 3.5mm Stereo Audio (Analog)

Video Output

1x HDMI output (HDMI pass-through)

ARC Support

Yes (with switch)

HDMI 3D Support

Yes

HDCP Version

HDCP 2.2

Max Bandwidth

600MHz

Max Baud Rate

18Gbps

Support Color Format

24bit, 30bit, 36bit deep color

Digital audio Support

Dolby Digital, Dolby TrueHD, DTS-HD, DTS, PCM, LPCM

Max Input Cable Distance

10m AWG26 HDMI standard cable

Max Input Cable Distance

10m AWG26 HDMI standard cable

Power Input

5V/1A

Package Contents

1x HDMI Audio Extractor

1x 0.5M HDMI Lead

1x USB-C Cable

1x 3.5mm to 2RCA(R/L) Adapter

1x User Manual
