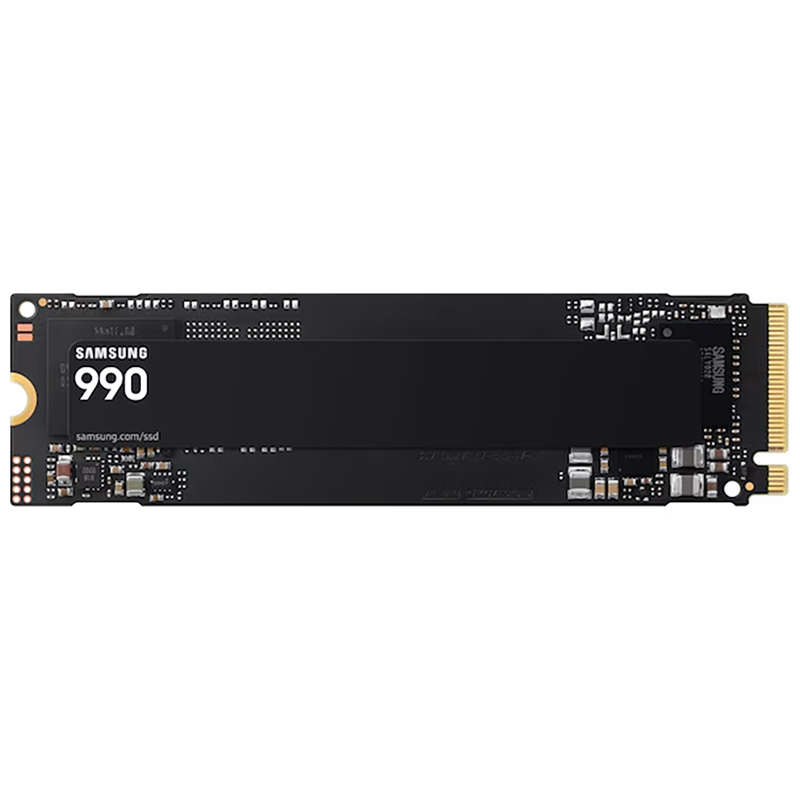

Samsung 990 1TB 2280 NVMe PCIe 4.0 M.2 SSD (MZ-V9V1T0BW)

Application

Client PCs

Rated Capacity

1,000GB (1GB=1 Billion bytes by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor

M.2 (2280)

Interface

PCIe® 4.0 x4, NVMe™ 2.0

Dimension (WxHxD)

Max 80.15 x Max 22.15 x Max 2.38 mm

Weight

Max 9.0g

Storage Memory

Samsung V-NAND

Controller

Samsung in-house Controller

Cache Memory

HMB(Host Memory Buffer)

SPECIAL FEATURE

TRIM Support

Supported

S.M.A.R.T Support

Supported

GC (Garbage Collection)

Supported

Encryption Support

AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)

WWN Support

Not supported

Device Sleep Mode Support

Yes

PERFORMANCE

Sequential Read

7,150MB/s

Sequential Write

6,450MB/s

Random Read

700KIOPS

Random Write

1,100KIOPS

ENVIRONMENT

Average Power Consumption (system level)

Average: Read 4.0 W / Write 3.7 W *Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Typical 55 mW * Actual power consumption may vary depending on system hardware & configuration

Power Consumption (Device Sleep)

Typical 3 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage

3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

1.5 million Hours

Operating Temperature

0°C to 70°C

Shock

1,500G(Gravity), duration: 0.5ms, 3 axis

ACCESSORIES

Installation Kit

Not Available

SOFTWARE

Management SW

Magician Software for SSD management
