Home  > PC Parts  > Computer Parts  > Cases  > NZXT Cases > NZXT H3 Flow Micro-ATX Case - White (CC-H31FW-01)

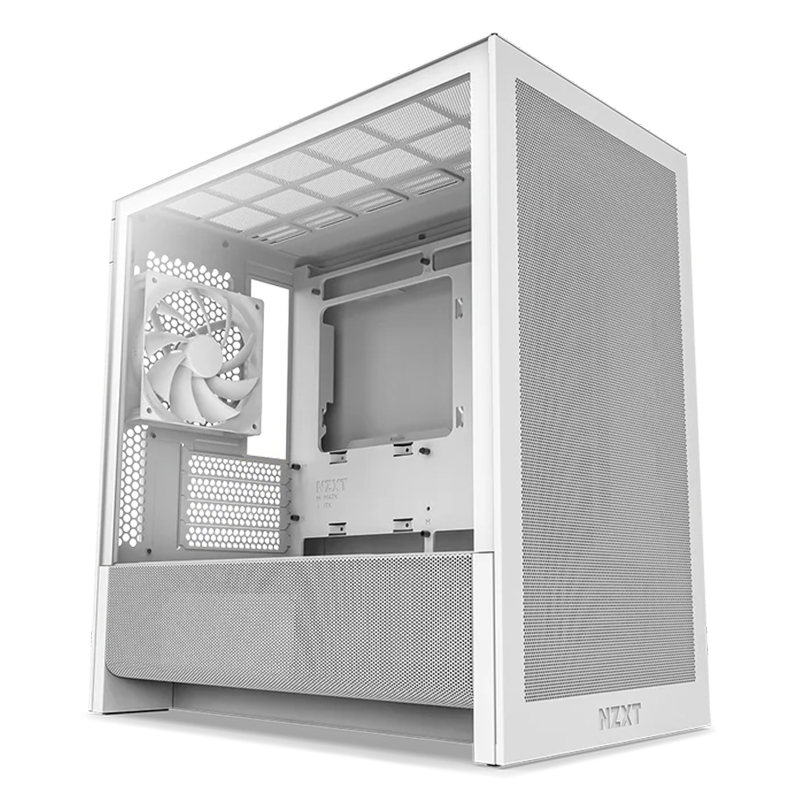

NZXT H3 Flow Micro-ATX Case - White (CC-H31FW-01)

Compact micro‑ATX case with tempered glass, SGCC steel, 35 L volume, 4.8 kg. Supports Micro‑ATX/Mini‑ITX, rear‑connect MB, up to 377 mm GPU, 170 mm CPU cooler, 185 mm PSU. Front/Top radiator up to 280/240 mm, includes 120 mm fan.

NZXT H3 Flow Micro-ATX Case - White (CC-H31FW-01)
  • NZXT-Cases-NZXT-H3-Flow-Micro-ATX-Case-White-CC-H31FW-01-7
  • NZXT-Cases-NZXT-H3-Flow-Micro-ATX-Case-White-CC-H31FW-01-3
  • NZXT-Cases-NZXT-H3-Flow-Micro-ATX-Case-White-CC-H31FW-01-2
  • NZXT-Cases-NZXT-H3-Flow-Micro-ATX-Case-White-CC-H31FW-01-1
  • NZXT-Cases-NZXT-H3-Flow-Micro-ATX-Case-White-CC-H31FW-01-4
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post In Stock
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 1-2 Days
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 At Other Store

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    NZXT H3 Flow Micro-ATX Case - White (CC-H31FW-01)
  • Model Number:
    CC-H31FW-01
  • Brand:
    NZXT NZXT
  • Warranty Period:
    2 Year

Description

NZXT-Cases-NZXT-H3-Flow-Micro-ATX-Case-White-CC-H31FW-01-5



SPECIFICATIONS:

DIMENSIONS


Height (with feet)

400 mm (15.75 in)

Width

225 mm (8.86 in)

Depth

389 mm (15.31 in)

Volume

35.0 L

Weight

4.8 kg (10.58 lb)

GENERAL


Enclosure Type

Micro-ATX Case

Motherboard Compatibility

Micro-ATX, Mini-ITX

Supports Rear-Connecting Motherboard
(BTF, Project Zero)

Yes (Micro-ATX)

Materials

SGCC steel, clear tempered glass

CLEARANCE


CPU Cooler Height

170 mm

GPU Length

Up to 377 mm (without front fans) Up to 352 mm (with front fans) Up to 317 mm (with front radiator and fans)

PSU Length

Up to 185 mm

Cable Routing Space

Up to 31.5 mm

Front Radiator + Fan Thickness

Up to 63 mm

Top Radiator + Fan Thickness

Up to 70 mm

FRONT I/O PORTS


USB 3.2 Type-A

1

USB 3.2 Gen2x2 Type-C

1

EXPANSION SLOTS


Standard

4

Vertical

0

DRIVE BAYS


2.5"

1+2

3.5"

1

FAN SUPPORT


Front

2 x 120 mm / 2 x 140 mm

Top

2 x 120 mm / 2 x 140 mm

Bottom

2 x 120 mm

Rear

1 x 120 mm (1 x F120Q (CV) included)

RADIATOR SUPPORT


Front

Up to 280 mm

Top

Up to 240 mm

FAN SPECS


Model

F120Q (CV)

Speed

1,350 ± 150 RPM

Airflow

60.2 CFM

Static Pressure

1.05 mmH2O

Noise

24.1 dBA

Fan Connector

3-pin
