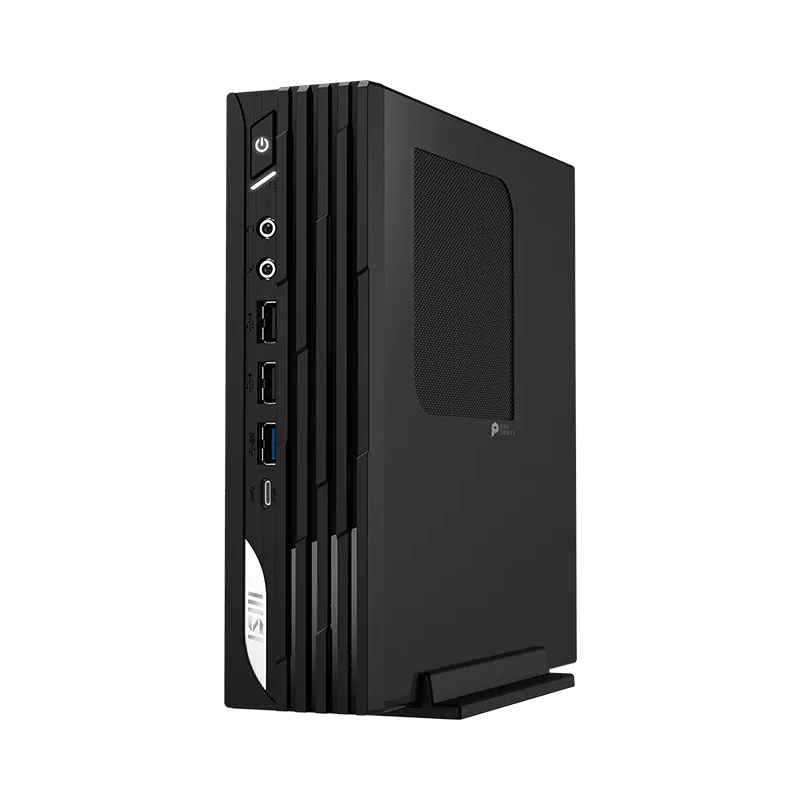

MSI Pro DP21 14M i5-14400 1TB SSD 16GB RAM W11P Mini PC (PRO DP21 14M-1025AU)

CPU

Intel Core i5 Processor 14400

CPU Clock

2.5GHz

CPU Cores

10

TDP

65W

Cache

20 MB Intel® Smart Cache

Threads

16

Max Turbo Frequency

up to 4.70 GHz

CPU Cooler

Air cooling 65W

Chipset

H610

Memory Size

16GB(8GB*2)

Memory Type

DDR5 SDRAM

Memory Speed

2800(5600)MHz

Module Type

SO-DIMM

Memory Slot(Total)

2

Memory Slot(Free)

0

Max Capacity

Max 64GB

Memory Slot (Total/Free)

2/0

SSD Interface

PCIe GEN3x4

SSD Form Factor

M.2-2280 M-KEY

SSD Config

1TB*1

SSD Size

1TB

M.2 slots (Total/Free)

1/0

2.5" Drive Bays (Total/Free)

2/2

3.5" Drive Bays (Total/Free)

N/A/0

M.2 slots(Total)

1

M.2 slots(Free)

0

2.5" Drive Bays(Total)

2

2.5" Drive Bays (Free)

2

3.5" Drive Bays(Total)

N/A

3.5" Drive Bays(Free)

0

Audio Chipset

Realtek ALC897

Audio Type

2.1 Channel HD Audio

LAN

N/A

WLAN Version

Wi-Fi 6E+BT

BT Version

5.3

WLAN

INTEL/AX211.NGWG.NV

I/O Ports (Front)

USB 2.0 Type A x 2

Audio Mic-in x 1

Audio Headphone-out x 1

USB 3.2 Gen 1 (5G) Type C x 1

USB 3.2 Gen 1 (5G) Type A x 1

I/O Ports (Rear)

RJ45 x 1

HDMI out x 1 (v2.1)

DP out x 1 (v1.4)

COM Port x 1

USB 3.2 Gen 2 (10G) Type C (R) x 1

USB 3.2 Gen 2 (10G) Type A (R) x 3

Lock type - Kensington Lock

Power

120W Adaptor

Product Dimension (WxDxH) (mm)

204 x 208 x 54.8

Product Dimension (WxDxH) (inch)

8.03 x 8.19 x 2.16

Inside Carton Dimension (WxDxH) (mm)

8.03 x 8.19 x 2.16

Inside Carton Dimension (WxDxH) (inch)

0.32 x 0.32 x 0.09

Outer Carton Dimension Standard (WxDxH) (mm)

271 x 382 x 122

Outer Carton Dimension Standard (WxDxH) (inch)

10.67 x 15.04 x 4.8

Weight (Net kg)

1.27

Net Weight (lbs)

2.8

Weight (Gross kg)

2.8

Gross Weight (lbs)

6.17

Regulatory Compliance

FCC(Class B), CB/CE, UL(CUL), BSMI

Operating, Storage Temperature

0° C ~ 35° C ; -20° C ~ 60° C

Operating, Storage Humidity

0% ~ 85%;0% ~ 90%
