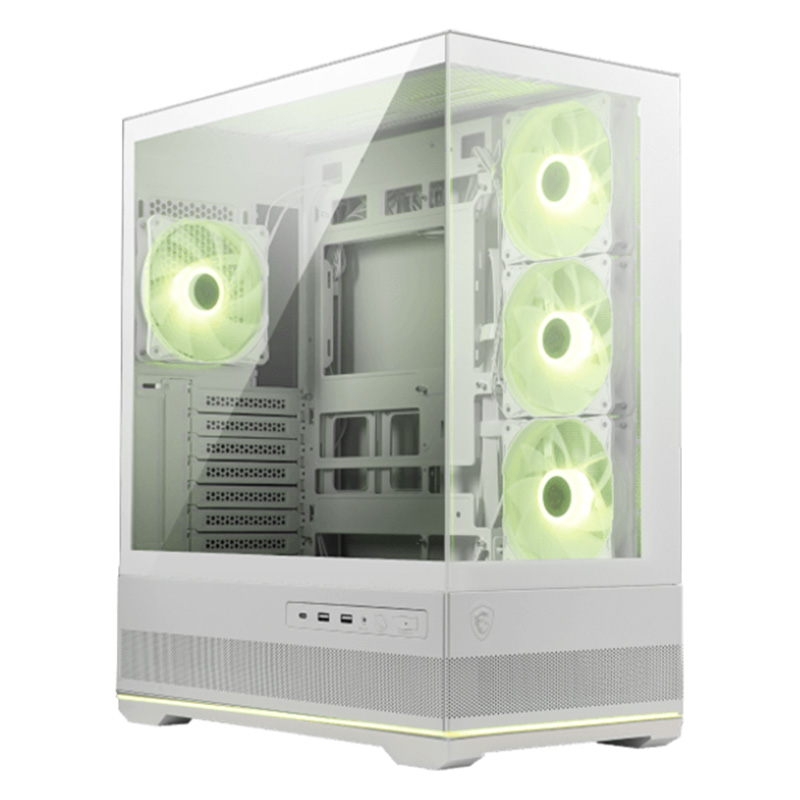

MSI MAG PANO 110R PZ Mid-Tower ATX Case - White (MAG PANO 110R PZ WHITE)
Mid‑tower case supporting ATX, Micro‑ATX & Mini‑ITX, 7 slots, 2×2.5″, 2×3.5″ & 2 combo bays, 200 mm PSU, 400 mm GPU, 160 mm cooler clearance. Includes 3 side + 1 rear ARGB 120 mm fans, top radiator up to 360 mm, USB‑C 20 Gbps, dual USB‑A, audio.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Form Factor
Mid-Tower
I/O Ports
1 x USB 20Gbs (Type-C)
2 x USB 5Gbs (Type-A)
1 x Audio-Out / Mic-in
1 x LED Button
1 x Power Button
Drive Mount Support
2 x 2.5“
2 x 3.5“
2 x 2.5"/3.5" combo
Case Expansion Slots
7
Maximum PSU Length
200 mm / 7.87 inches
Maximum GPU Length
400 mm / 15.75 inches
Maximum CPU Cooler Length
160 mm / 6.30 inches
Lighting
Side: 3 x ARGB Fan (Reverse Blades Fan)
Rear: 1 x ARGB Fan
Power Supply (not included)
ATX
Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm (Above the power shroud)
Pre-installed Fan
Side: 3 x 120 mm
Rear: 1 x 120 mm
Radiator Layout
Top: 120 / 140 / 240 / 280 / 360 mm
Front: NA
Rear: 120 mm
Side: NA
Bottom: NA
Support MB Form Factor
Regular:
ATX / Micro-ATX / Mini-ITX
Back-connect:
ATX / Micro-ATX
Dimension
420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches
Product Name:
MSI MAG PANO 110R PZ Mid-Tower ATX Case - White (MAG PANO 110R PZ WHITE)
