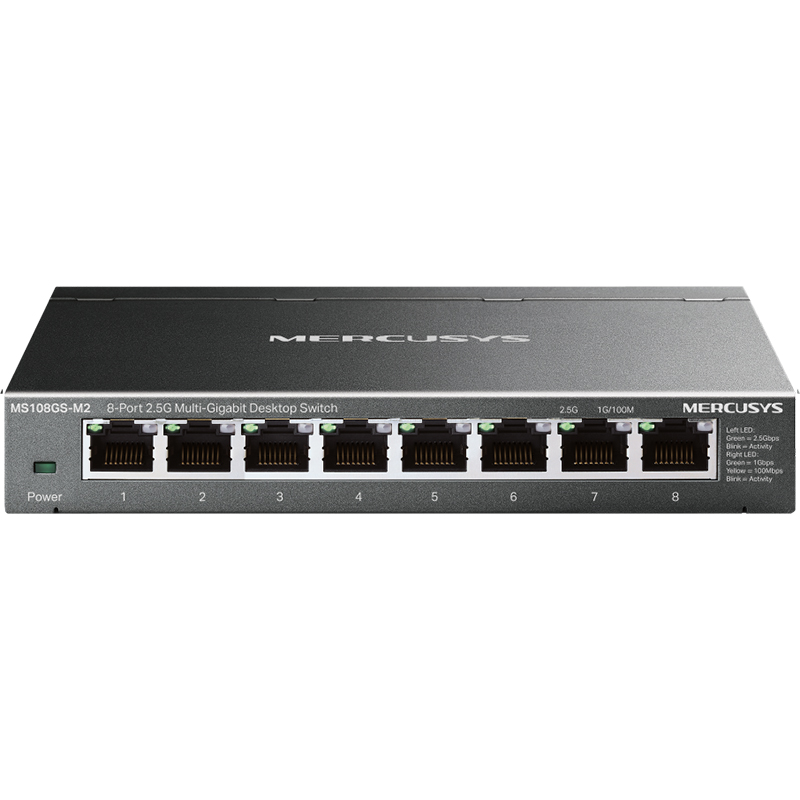

Mercusys 8-Port 2.5G Multi-Gigabit Desktop Switch (MS108GS-M2)

Transfer Method

Store and Forward

Advanced Features

• 802.3X Flow Control

• 802.1p/DSCP QoS

• IGMP Snooping

HARDWARE

Interfaces

8× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX

External Power Supply

External Power Adapter (Output: 12 VDC / 1.0 A)

Standards and Protocols

IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz

Fan Quantity

Fanless

Jumbo Frame

12 KB

Switching Capacity

40 Gbps

LED

• Power

• Link/Act Indicators

Mac Address Table

4 K

Max Power Consumption

8.87 W

Max Heat Dissipation

30.158 BTU/h

PERFORMANCE

Packet Forwarding Rate

29.8 Mpps

GENERAL

Dimensions ( W x D x H )

6.2 × 4.0 × 1.0 in (158 × 101 × 25.4 mm)

OTHERS

Certifications

CE, FCC ,RoHS

Package Contents

• 8-Port 2.5G Multi-Gigabit Desktop Switch MS108GS-M2

• Power Adapter

• Installation Guide

• Rubber Feet

Environment

• Operating Temperature: 0–40 °C (32–104 °F)

• Storage Temperature: -40–70 °C (-40–158 °F)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
