Name: Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+ (MS110CMP)
Brand: Mercusys
SKU: 83444
Price: 63.9200 AUD
Availability: InStock

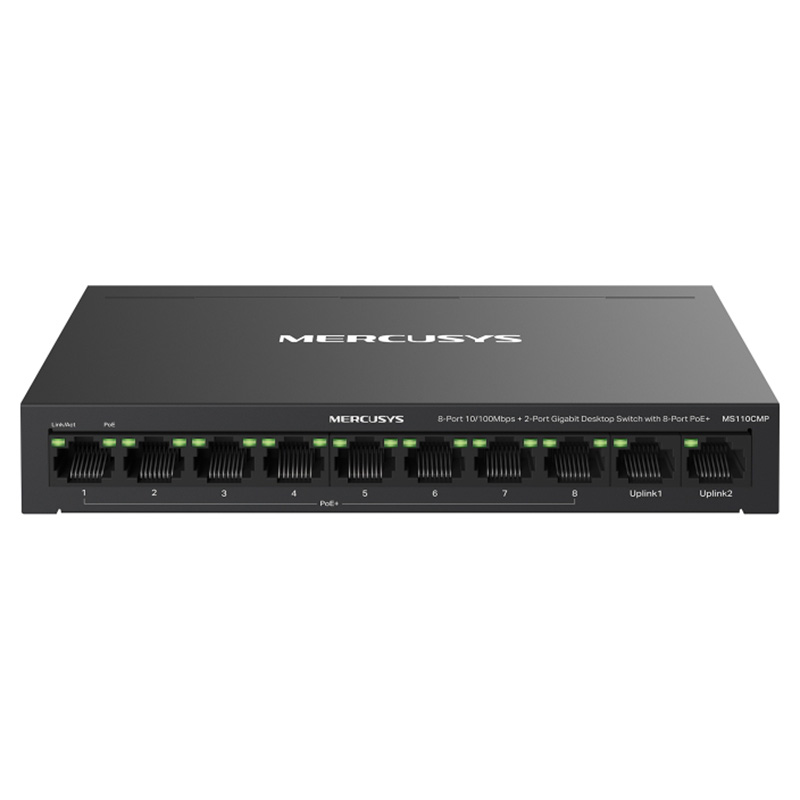

Mercusys 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+
The MS110CMP is a 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+, ideal for small and medium business IP surveillance with a 115 W PoE budget. The plug-and-play design makes it for easy deployment without the need for a technician.

10 Ports: 8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports
Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports*
2× Uplink Ports: MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Plug and Play: Simple to use and saves time and effort
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
Durable Metal Casing: Allows for efficient heat dissipation and long network life

SPECIFICATIONS:

HARDWARE
Dimensions (W X D X H)	6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
PoE Ports	RJ45 Standard: Compliant with 802.3 af/at Powered Devices PoE Ports: Port 1- Port 8
Interfaces	10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Supply	External Power Adapter (Output: 53.5V/1.31A)
Installation	Desktop / Wall Mount
Standards and Protocols	IEEE 802.3x Flow Control
Data Rates	10/100 Mbps at Half Duplex 20/200 Mbps at Full Duplex
Jumbo Frame	2 KB
Mac Address Table	2K
Max Power Consumption	10.064 BTH/h（no PD connected) 263.568 BTH/h（with 65W PD connected）
OTHERS
Package Contents	• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110CMP) • Power Adapter • Quick Installation Guide
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~95% RH non-condensing
Notes	PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. *The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
