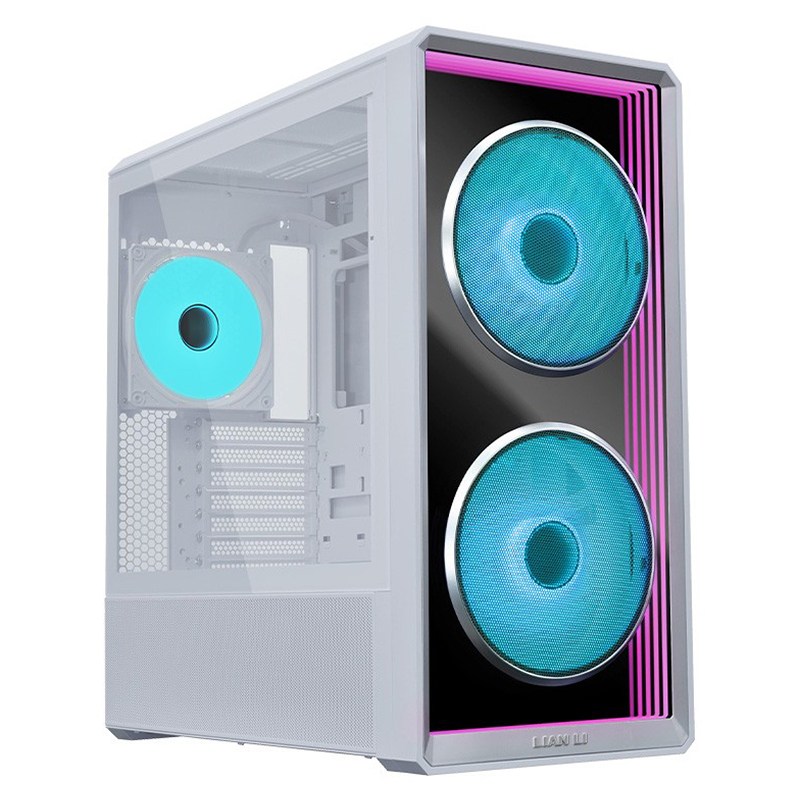

Lian Li LanCool 217INF ARGB Infinix Mirror ATX Case - White (PC-LAN217INFW)

Dimensions

482 mm (L) × 238 mm (W) × 503 mm (H)

Materials

Steel / 4.0 mm tempered glass

Motherboard support

SSI-EEB (max width 330 mm) / E-ATX (max width 280 mm)

ATX / Micro-ATX / Mini-ITX

Back connect motherboard support

ATX / M-ATX

PSU length limit

Standard orientation: ATX up to 220 mm

Rotated orientation: ATX up to 180 mm

Fan support

Front: 2 × 170 mm (pre-installed)

Top: 3 × 120 mm or 2 × 140 mm

Bottom (above PSU shroud): 3 × 120 mm

Bottom (under PSU shroud): 2 × 120 mm

Rear: 1 × 140 mm (pre-installed) / 1 × 120 mm

Radiator support

Top: 360 / 280 / 240 mm

Drive bays

Behind motherboard tray: up to 2 × 2.5″ SSD

(or 1 × 2.5″ SSD when using a back-connector mATX board)

Drive cages: 2; each supports 1 × 3.5″ HDD + 1 × 2.5″ SSD (or 1 × 3.5″ HDD / 2 × 2.5″ SSD)

PSU-shroud cover: 1 × 2.5″ SSD

GPU clearance

380 mm (length)

CPU cooler height

180 mm (max)

Expansion slots

7

Front I/O

1 x Power button

2 × USB 3.0

1 × USB 3.2 Type-C

1 x Audio / Microphone Combo Jack

1 × M1 Front Panel Lighting Control Button

1 × M2 Fan Lighting Control Button

Dust filters

Bottom ×1 / Front ×2

Integrated hub

ARGB / FAN HUB

(Sync Motherboard Fan Header x3 / ARGB Header x1)
