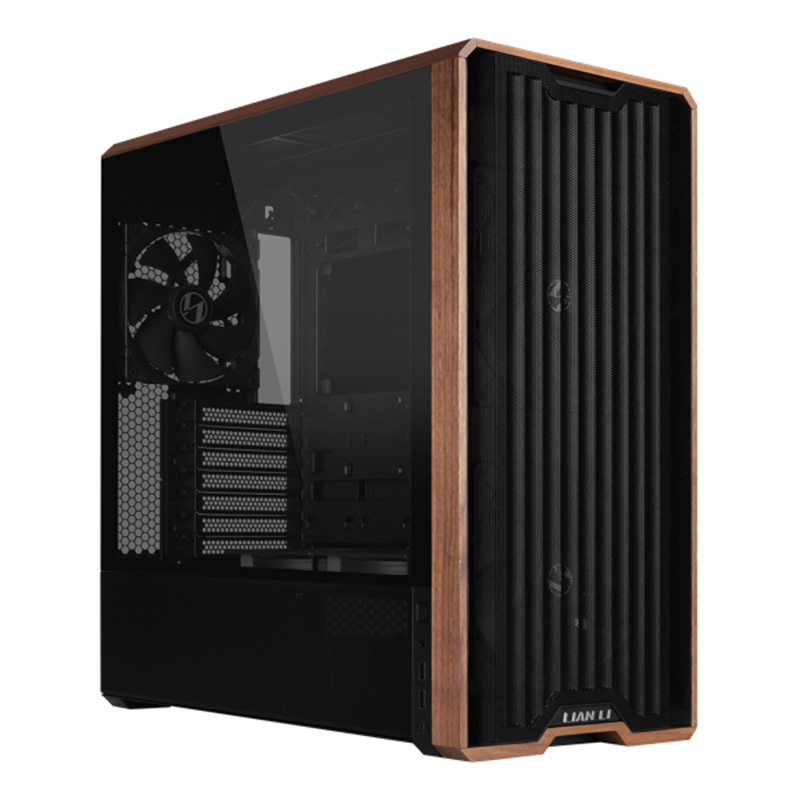

Lian Li LanCool 217 Mid-Tower E-ATX Case (PC-LAN217X)
Black steel case with 4 mm glass. Supports SSI‑EEB/E‑ATX/ATX/Micro‑ATX/Mini‑ITX, up to 380 mm GPU, 180 mm CPU. Includes 2×170 mm front fans, rear 140 mm, PSU fan mounts, top radiator up to 360 mm, 7 slots, 2 USB 3.0, USB‑C, audio, ARGB/FAN hub.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Color
Black
Dimension
(D)482mm x (W)238mm x (H)503mm
Material
Steel / 4.0mm Tempered Glass / Wood
Motherboard support
SSI-EEB(Width Max 330mm) /
E-ATX（Width Max 280mm）
ATX / Micro-ATX/Mini-ITX
Back connect motherboard support
ATX / Micro-ATX
PSU support length
Standard Mode：ATX（Under 220mm）
Rotated Mode：ATX（Under 180mm）
Fan support
Front: 170mm x 2 (Included) / 140mm x 3 / 120mm x 3
Top: 3 x 120mm / 2 x 140mm
Above PSU Shroud: 3 x 120mm (2 Included)
Under the PSU shroud: 2 x 120mm
Rear: 1x 140mm (Included) / 1x 120mm
Radiator support
Top: 360 / 280 / 240mm
Drive support
Back Connect Motherboard: 2 x 2.5″ SSD /
1 x 2.5″ SSD(behind MB)
2 x Drive Cage: 1 x 3.5″HDD+
1 x 2.5″ SSD+(1 x 3.5″ HDD or 1 x 2.5″ SSD)
PSU Shroud: 1 x 2.5″ SSD
GPU length clearance
380mm (Max.)
CPU height clearance
180mm (Max.)
Expansion slot
7
I/O ports
2 x Power Button
2 x USB 3.0
1 x USB Type-C
1 x Audio
Dust filter
1 x Bottom, 1 x Front
Hub
ARGB / FAN Hub：6 x PWM FAN port
4 x 5V ARGB port
Product Name:
Lian Li LanCool 217 Mid-Tower E-ATX Case (PC-LAN217X)
