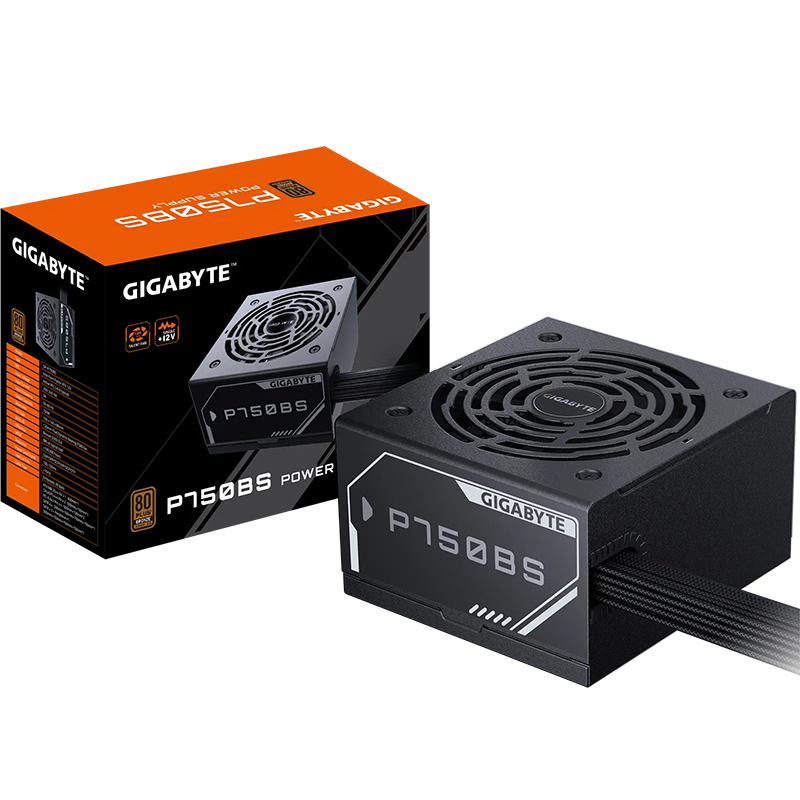

Gigabyte P750BS 750W 80+ Bronze ATX Power Supply (GP-P750BS)
750W ATX‑12V PSU with active PFC (>0.9), 88% efficiency (80 PLUS Bronze), 120 mm FDB fan, 150×140×86 mm, >100k h MTBF, OVP/OPP/SCP/UVP/OCP/OTP protection, 100‑150 ms Power‑Good, black embossed cables and full ATX/CPU/PCI‑e/SATA connectors.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Type
Intel Form Factor ATX 12V
PFC
Active PFC (>0.9 typical)
Input Voltage
200-240 Vac
Input Current
6 A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimensions
150 x 140 x 86 mm
Fan Type
120mm Fluid Dynamic Bearing (FDB) Fan
80 PLUS
Bronze (230V EU)
Efficiency
88% at typical load
MTBF
>100,000 hours
Protections
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Embossed, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-E 6+2 Pin x 4 : 500mm+150mm*2
SATA x 4 : 500mm+150mm+150mm+150mm*1
SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1
Product Name:
Gigabyte P750BS 750W 80+ Bronze ATX Power Supply (GP-P750BS)
