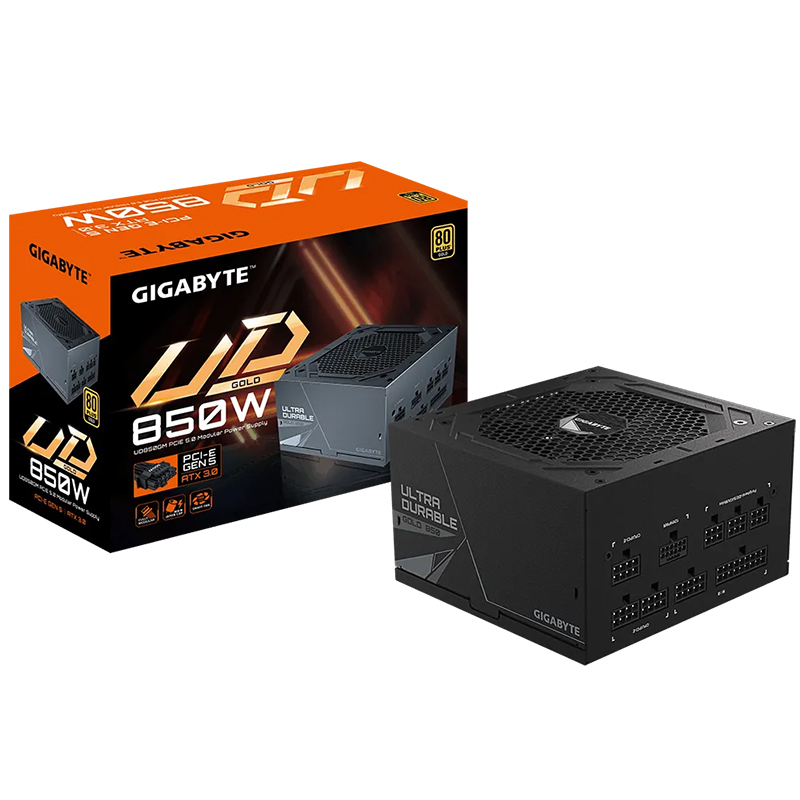

Gigabyte 850W 80+ Gold Fully Modular PCIE 5.0 ATX Power Supply - Rev 2.0 (GP-UD850GM PG5 V2)

850W ATX12V v3.0 PSU with Active PFC (>0.9), 80 PLUS Gold (90% efficiency), 120 mm HYB fan, >100k h MTBF, full OVP/OPP/SCP/UVP/OCP/OTP protection, flat black cables, 150×140×86 mm.

Gigabyte 850W 80+ Gold Fully Modular PCIE 5.0 ATX Power Supply - Rev 2.0 (GP-UD850GM PG5 V2)
  • Power-Supply-PSU-Gigabyte-850W-80-Gold-Fully-Modular-PCIE-5-0-ATX-Power-Supply-Rev-2-0-GP-UD850GM-PG5-V2-7
  • Power-Supply-PSU-Gigabyte-850W-80-Gold-Fully-Modular-PCIE-5-0-ATX-Power-Supply-Rev-2-0-GP-UD850GM-PG5-V2-2
  • Power-Supply-PSU-Gigabyte-850W-80-Gold-Fully-Modular-PCIE-5-0-ATX-Power-Supply-Rev-2-0-GP-UD850GM-PG5-V2-4
  • Power-Supply-PSU-Gigabyte-850W-80-Gold-Fully-Modular-PCIE-5-0-ATX-Power-Supply-Rev-2-0-GP-UD850GM-PG5-V2-3
  • Power-Supply-PSU-Gigabyte-850W-80-Gold-Fully-Modular-PCIE-5-0-ATX-Power-Supply-Rev-2-0-GP-UD850GM-PG5-V2-5
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post In Stock
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 1-2 Days
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 At Other Store

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    Gigabyte 850W 80+ Gold Fully Modular PCIE 5.0 ATX Power Supply - Rev 2.0 (GP-UD850GM PG5 V2)
  • Model Number:
    GP-UD850GM PG5 V2
  • Brand:
    Gigabyte Gigabyte
  • Warranty Period:
    5 Year

Description

Power-Supply-PSU-Gigabyte-850W-80-Gold-Fully-Modular-PCIE-5-0-ATX-Power-Supply-Rev-2-0-GP-UD850GM-PG5-V2-1



SPECIFICATIONS:

Type

Intel Form Factor ATX 12V v3.0

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

12-6A

Input Frequency

60-50 Hz

Output Capacity

850W

Dimensions

150 x 140 x 86 mm

Fan Type

120mm Hydraulic Bearing(HYB)fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protections

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All black

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

PCI-e 16 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 :

600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
