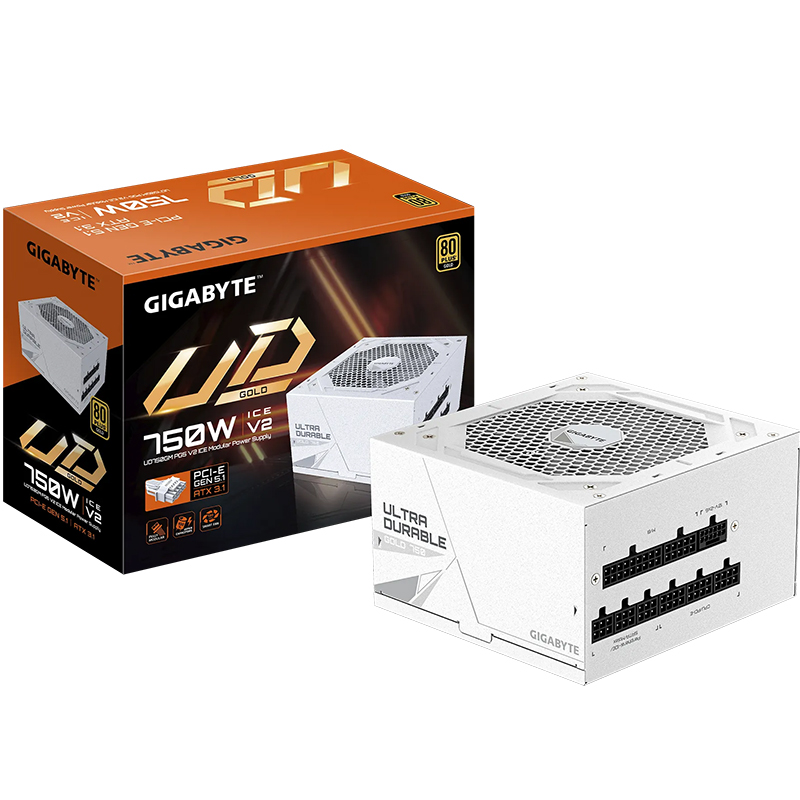

Gigabyte 750W UD750GM PG5 V2 ICE 80+ Gold ATX V3.1 PCIe Gen 5.1 Fully Modular Power Supply (GP-UD750GM PG5 ICE)
750W ATX 12V v3.1 PSU with Active PFC (>0.9), 80 PLUS Gold (90% efficiency), 120 mm HYB fan, >100k‑hour MTBF, OVP/OPP/SCP/UVP/OCP/OTP protection, 100‑150 ms Power‑Good, full modular white cables.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Type
Intel Form Factor ATX 12V v3.1
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimensions
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing(HYB) Fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protections
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Embossed, All white
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
PCI-e 12+4 Pin x 1:700mm*1
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1
Product Name:
Gigabyte 750W UD750GM PG5 V2 ICE 80+ Gold ATX V3.1 PCIe Gen 5.1 Fully Modular Power Supply (GP-UD750GM PG5 ICE)
