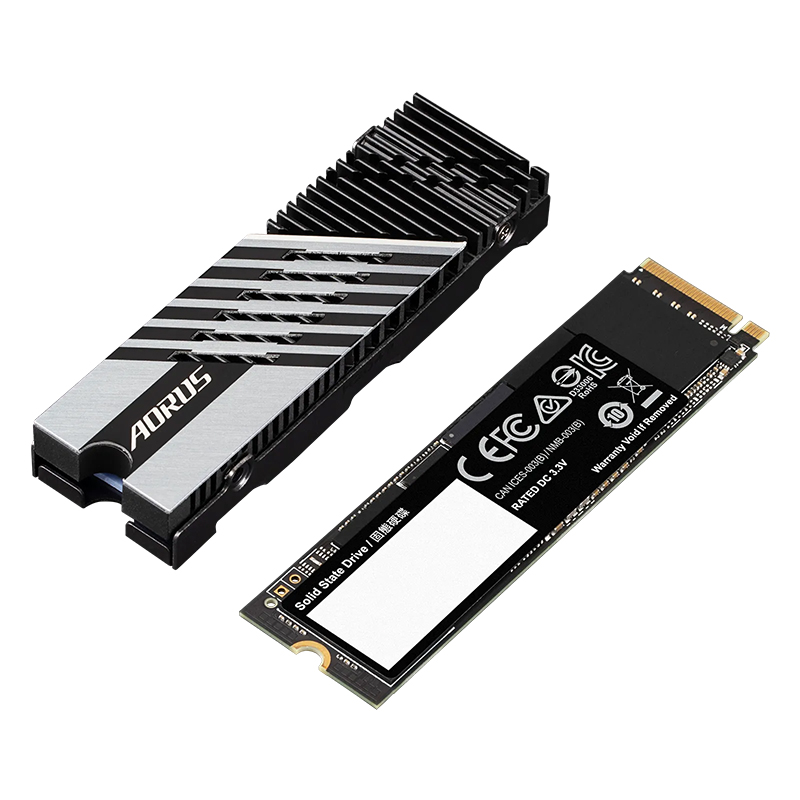

1TB PCIe 4.0 x4 NVMe SSD (M.2 2280) with 3D TLC NAND and 1 GB DDR4 cache delivers up to 7300 MB/s read, 6000 MB/s write. Operates 0‑70 °C, 6.7 W max, dimensions 80 × 22 × 2.3 mm (single‑side).
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Interface
PCI-Express 4.0 x4, NVMe 1.4
Form Factor
M.2 2280
Total Capacity
1000GB
NAND
3D TLC NAND Flash
External DDR Cache
DDR4 1GB
Sequential Read speed
Up to 7300 MB/s
Sequential Write speed
Up to 6000 MB/s
Dimension
SSD without Heatsink: 80 x 22 x 2.3 mm (Single Side)
SSD with Heatsink: 80.5 x 23.5 x 11.25 mm
Mean time between failure (MTBF)
1.6 million hours
Max. Operating Power
Read: 6.6W
Write: 6.7W
Power Consumption (Idle, PS3)
30mW
Power Consumption(PS4, L1.2)
3mW
Temperature (Operating)
0°C to 70°C
Temperature (Storage)
-40°C to 85°C
Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
