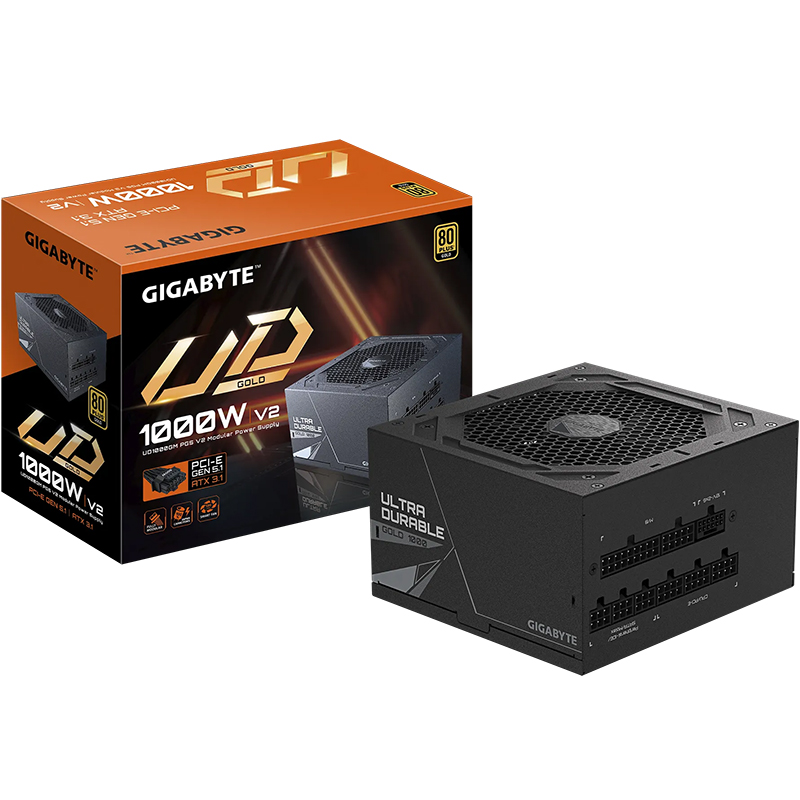

Gigabyte 1000W 80+ Gold Fully Modular PCIe 5.1 ATX 12V v3.1 Power Supply (GP-UD1000GM PG5 V2)

1000W ATX12V v3.1 PSU with Active PFC (>0.9), 80+ Gold (90% eff.), 120mm hydraulic bearing fan, >100k‑hour MTBF, full OVP/OPP/SCP/UVP/OCP/OTP protection, compact 150×140×86 mm, embossed black cables.

Gigabyte 1000W 80+ Gold Fully Modular PCIe 5.1 ATX 12V v3.1 Power Supply (GP-UD1000GM PG5 V2)
  • Power-Supply-PSU-Gigabyte-1000W-80-Gold-Fully-Modular-PCIe-5-1-ATX-12V-v3-1-Power-Supply-GP-UD1000GM-PG5-V2-16
  • Power-Supply-PSU-Gigabyte-1000W-80-Gold-Fully-Modular-PCIe-5-1-ATX-12V-v3-1-Power-Supply-GP-UD1000GM-PG5-V2-10
  • Power-Supply-PSU-Gigabyte-1000W-80-Gold-Fully-Modular-PCIe-5-1-ATX-12V-v3-1-Power-Supply-GP-UD1000GM-PG5-V2-11
  • Power-Supply-PSU-Gigabyte-1000W-80-Gold-Fully-Modular-PCIe-5-1-ATX-12V-v3-1-Power-Supply-GP-UD1000GM-PG5-V2-12
  • Power-Supply-PSU-Gigabyte-1000W-80-Gold-Fully-Modular-PCIe-5-1-ATX-12V-v3-1-Power-Supply-GP-UD1000GM-PG5-V2-13
  • Power-Supply-PSU-Gigabyte-1000W-80-Gold-Fully-Modular-PCIe-5-1-ATX-12V-v3-1-Power-Supply-GP-UD1000GM-PG5-V2-14
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want a stock alert?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    • DELIVERY
    • Post In Stock
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 In Stock
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 In Stock

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Power-Supply-PSU-Gigabyte-1000W-80-Gold-Fully-Modular-PCIe-5-1-ATX-12V-v3-1-Power-Supply-GP-UD1000GM-PG5-V2-9



SPECIFICATIONS:

Type

Intel Form Factor ATX 12V v3.1

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

15-6.5A

Input Frequency

60-50 Hz

Output Capacity

1000W

Dimensions

150 x 140 x 86 mm

Fan Type

120mm Hydraulic Bearing(HYB) Fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protections

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Embossed, All black

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

PCI-e 12+4 Pin x 1:700mm*1

SATA x 8 : 600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1




  • Product Name:
    Gigabyte 1000W 80+ Gold Fully Modular PCIe 5.1 ATX 12V v3.1 Power Supply (GP-UD1000GM PG5 V2)
  • Model Number:
    GP-UD1000GM PG5 V2
  • Brand:
    Gigabyte Gigabyte
  • Warranty Period:
    10 Year
