TECHNICAL INFORMATION |
|
Number of Screens | 1 |
Screen Size Class | 27" |
Viewable Screen Size | 27" |
Screen Mode | 3840 x 2160 UHD |
Panel Technology | In-plane Switching (IPS) Black Technology |
Response Time Details | 5ms GTG (Fast) 8ms GTG |
Aspect Ratio | 16:9 |
Pixel Pitch | 0.1554 mm x 0.1554 mm |
Horizontal Viewing Angle | 178° |
Vertical Viewing Angle | 178° |
Mount Type | Panel Mount |
Backlight Technology | LED Edgelight System |
HDCP Supported | Yes |
Maximum Adjustable Height | 150 mm |
Tilt Angle | -5° to 21° |
Swivel Angle | -45° to 45° |
Pivot Angle | -90° to 90° |
Features | VESA DisplayHDR 600 sRGB Eye Comfort Technology Low reflectance with anti-glare and hard-coating 3H Picture by Picture Picture in Picture Colour Calibration Ambient Light Sensor Cable Lock Slot Security Lock BFR Free PVC Free Arsenic-free Glass Mercury-free Narrow Bezel |
Horizontal Frequency | 30 kHz to 275 kHz |
Vertical Frequency | 48 Hz to 120 Hz |
Adjustable Stand | Yes |
Stand Adjustments | Tilt Pivot Height Swivel |
Stand Included | Yes |
Glass Hardness | 3H |
Soundbar Compatibility | Optional soundbar (sold separately) |
VIDEO |
|
Maximum Resolution | 3840 x 2160 |
Standard Refresh Rate | 3840 x 2160 up to 120 Hz |
Colour Supported | 1.07 Billion Colours |
Native Contrast Ratio | 3,000:1 |
Brightness | 450 cd/m2 600 cd/m2 |
Colour Gamut | DCI-P3 99% (CIE1976) (typical), Display P3 99%, sRGB 100% (CIE1931) (typical), BT.709 100%, Delta E <1.5 (Average) |
Pixel Per Inch (PPI) | 163 |
INTERFACES/PORTS |
|
Connectivity | 1 DisplayPort 1.4 port with DSC support (DRR for Microsoft Windows) 1 DisplayPort 1.4 port out 1 HDMI port (Supports up to UHD 3840 x 2160 120Hz FRL, VRR as per specified in HDMI2.1) 1 Thunderbolt 4 upstream port (DP1.4 (HDCP 2.2) with DSC support, PD: 140 W EPR , 2/4 Lanes switching) 1 Thunderbolt 4 downstream port (Downstream, Daisy Chain, 15 W) 1 USB-C (USB 10Gbps KVM) upstream port 1 Analog 2.0 audio line out port (3.5 mm jack) 4 USB Type-A ports 10Gbps 1 RJ45 Ethernet port, 2.5GbE Quick Access port: 1 USB Type-A 10Gbps port with BC 1.2 2 USB-C 10Gbps downstream ports |
USB Type-C (Power Delivery) | Up to 140W EPR |
Audio Line Out | Yes |
BUILT-IN DEVICES |
|
Built-in Devices | Ambient Light Sensor |
ENVIRONMENTAL CONDITIONS |
|
Operating Temperature Range | 0°C) to 40°C) |
Non-operating Temperature Range | -20°C to 60°C |
Operating Humidity Range | 10% to 80% (Non-condensing) |
Non-operating Humidity Range | 5% to 90% (Non-condensing) |
Maximum Operating Altitude | 4998.72 m |
Maximum Non-operating Altitude | 12192 m |
POWER DESCRIPTION |
|
Input Voltage Range | 100V AC to 240V AC |
Operating Power Consumption | 25.40 W |
Standby Power Consumption | 0.5 W |
Off-Mode Power Consumption | 0.3 W |
Frequency | 60 Hz 50 Hz |
Maximum Power Consumption | 325 W |
Voltage Current | 4 Ah |
PHYSICAL CHARACTERISTICS |
|
VESA Mount Compatible | Yes |
VESA Mount Standard | 100 x 100 |
Height | 353.51 mm |
Width | 612.44 mm |
Depth | 55.60 mm |
Height with Stand | 535.68 mm |
Width with Stand | 612.44 mm |
Depth with Stand | 189 mm |
Compressed Height with Stand | 385.68 mm |
Extended Height with Stand | 535.68 mm |
Weight (Approximate) | 5.22 kg |
Weight with Stand (Approximate) | 7.06 kg |
MISCELLANEOUS |
|

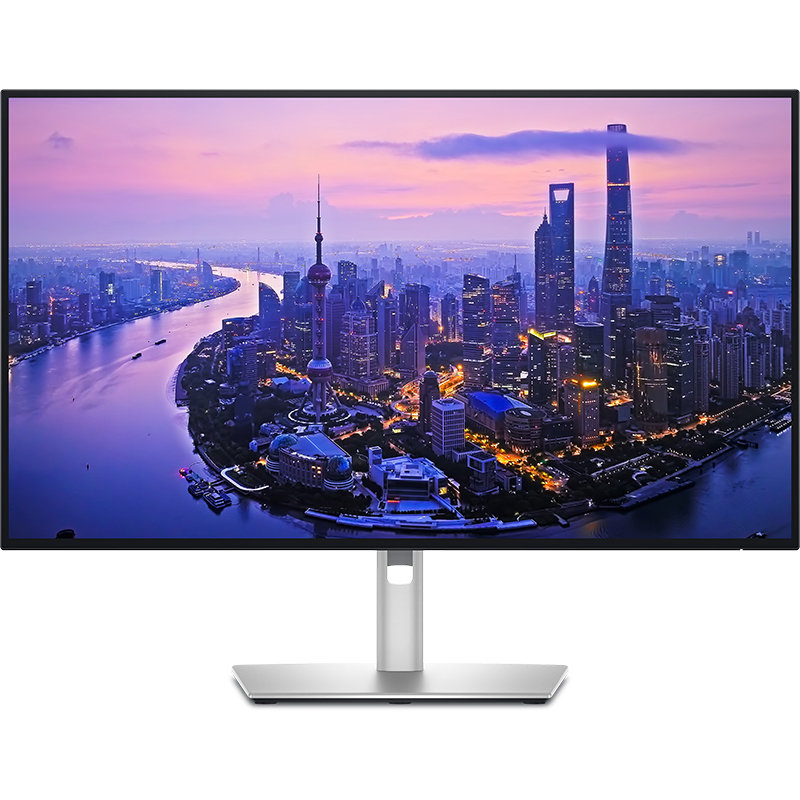

Package Contents | UltraSharp 27 3840 x 2160 Thunderbolt Hub Monitor U2725QE Stand Drivers and documentation media QR Card Safety Information |
Cables Included | Power cable 1 x DisplayPort-DisplayPort cable - 1.80 m 1 x USB Type-A to Type-C upstream cable 1.00 m 1 x Thunderbolt 4 passive cable - 1.00 m |
Energy Star | Yes |
Country of Origin | China |
TAA Compliant | Yes |
TCO Certified | Yes |
Dell Display Manager Compatibility | Yes |
Environmentally Friendly | Yes |
Environmental Certification | TCO Certified Edge |
Energy Efficiency Certification | ENERGY STAR 8.0 |
Energy Efficiency Compliance | Energy-related Products Directive Lot 5 (ErP Lot 5) |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
