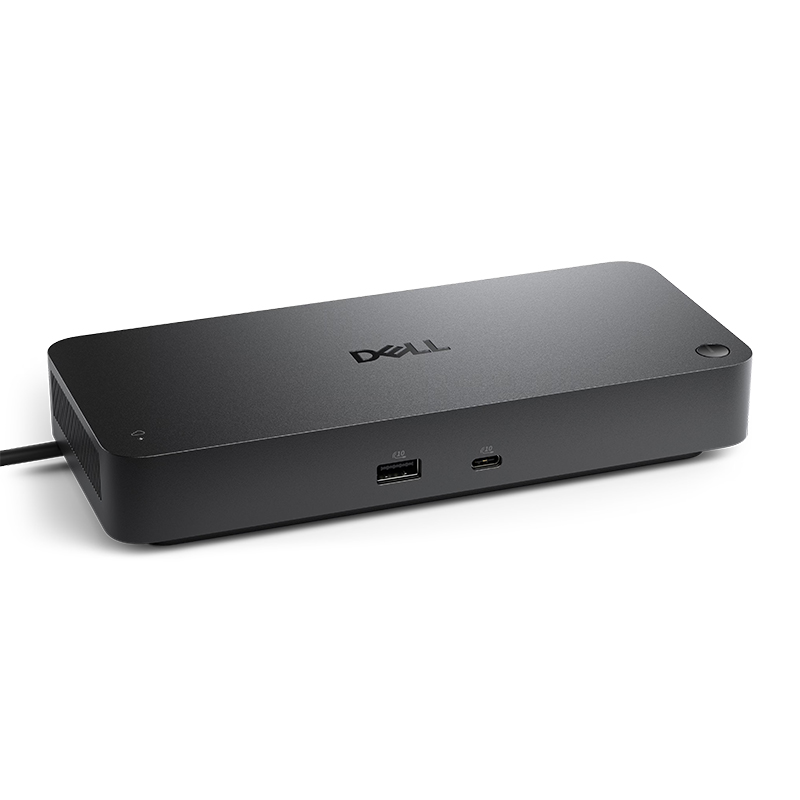

Dell SD25 Pro Smart Docking Station (210-BRJV)

Number of Displays Supported

4

Device Supported

Notebook

Management Features

Host PC Management

•MAC address pass-through

•PXE Boot

•Dock Power Button Sync

•Wake-On-LAN

•WLAN to LAN switch

•Kernel Direct Memory Access (DMA) protection

Dock Management Features

•Remote firmware updates without a PC

•Host PC based firmware updates

•Firmware update on disconnect

•Port Disablement independent of PC

DP1.4 with Display Stream Compression

•4 x WQHD (3440 x 1440) @ 60Hz

•3 x WQHD (3440 x 1440) @ 60Hz

•2 x 5K (5120 x 2160) @ 60Hz

•1 x 6K (6144 x 3456) @ 60Hz

DP1.4 without Display Stream Compression

Up to:

•4 x HD (1280x720) @ 60Hz

•3 x FHD (1920x1080) @ 60Hz

•2 x QHD (2560x1440) @ 60Hz

•1 x 4K (3840 x 2160) @ 60Hz

Ethernet Technology

RJ45 Ethernet port, 2.5GbE

Video interfaces

•2 x DP1.4

•1 x HDMI 2.1

•1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)

•4 x USB-A 3.2 Gen 2 (10 Gbps)

•1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Ports (Power)

•4 x USB-A 3.2 Gen 2 (4.5W each)

•1 x USB-C 3.2 Gen 2 (15W)

•1 x USB-C Multi-function DisplayPort (7.5W)

•All deliver power with or without PC

USB Power Delivery

•130W (Dell systems)

•96W (non-Dell systems)

Operating System Supported

•Windows 10

•Windows 11

•Ubuntu

•Red Hat Enterprise Linux

•ChromeOS

Maximum Power Supply Wattage

180W

Height

205mm

Width

90mm

Depth

35.25mm

Weight (Approximate)

562 g

Package Contents

•Docking Station

•Power Adapter and Power Cord

•Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)

Kensington Security Slot

Yes
