GameVoice Mix
PS4 (*Requires optical connection)
Controls
Volume control knob, Scout Mode button, SBX button, Gain switch
Weight
144g
Dimensions
111 x 70 x 24 mm
Headphone Amp
Output Impedance: 1Ω, Supported Headphone Impedance: 16–600Ω
Dynamic Range (DNR)
130 dB
Audio Technology
SB-Axx1™
Max. Playback Quality
DSP Mode: PCM 16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0 kHz, Direct Mode: PCM 16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0, 176.4, 192.0, 352.8, 384.0 kHz*
DoP 24-bit / 176.4 , 352.4 kHz
* 384 kHz playback only available in Windows 10 or higher
Max. Recording Quality
Mic-in:
16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz, Optical-in:
16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz
Recording Resolution
Mic-in: 16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz
Line-in: 16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz
Optical In: 16 / 24 / 32-bit / 44.1, 48.0, 88.2, 96.0, 176.4, 192.0 kHz
Platform
USB-C
Connectivity Options (Main)
1 x 1/8″ Line In/mini TOSLINK In Combo Jack, 1 x 1/8″ Line Out/mini TOSLINK Out Combo Jack, 1 x 1/8″ Headphone / Headset Jack, 1 x 1/8″ Ext. Mic-in Jack
Headphone Amp
Output Impedance: 1Ω, Supported Headphone Impedance: 16–600Ω
Max Channel Output
Stereo
Supported Operating Systems
Windows® 8, Windows® 8.1, Windows® 10, Mac OS X v10.8 and above, Windows® 11
Included Accessories
Mini TOSLINK Cable
ASIO
Playback & Recording
DAC
Dynamic Range: 130 dB (A-weighted), THD+N: ~0.0002%
ADC
Dynamic Range: 114dB (A-weighted), THD+N: 0.0006%
Power
USB 2.0 / 3.0, USB Bus Powered
Recommended Usage
Gaming
System Requirements
Windows® OS
Intel® Core™i3 or AMD® equivalent processor
Intel, AMD or 100% compatible motherboard
Microsoft® Windows 10 32/64 bit, Windows 8.1/8.0 32/64 bit, Windows 7 32/64 bit
1GB RAM
>600 MB of free hard disk space
USB 2.0 / USB 3.0 port
Mac® OS
Mac OS X® 10.9 or higher
1GB RAM
USB 2.0 / USB 3.0 port
PS4
Firmware Version 5.0 or later
Available USB port
Available Optical Out port (for Dolby Digital decoding)
Xbox One
Xbox OS Version 10.0 or later
Available Optical Out port (for Dolby Digital decoding)
External USB Power (not included)
Voice communications not supported
Nintendo Switch
Switch OS 5.0 or later
Available 3.5mm headphone port
Available USB port (in docking mode)
External USB Power (not included)
Voice communications not supported
Package Contents

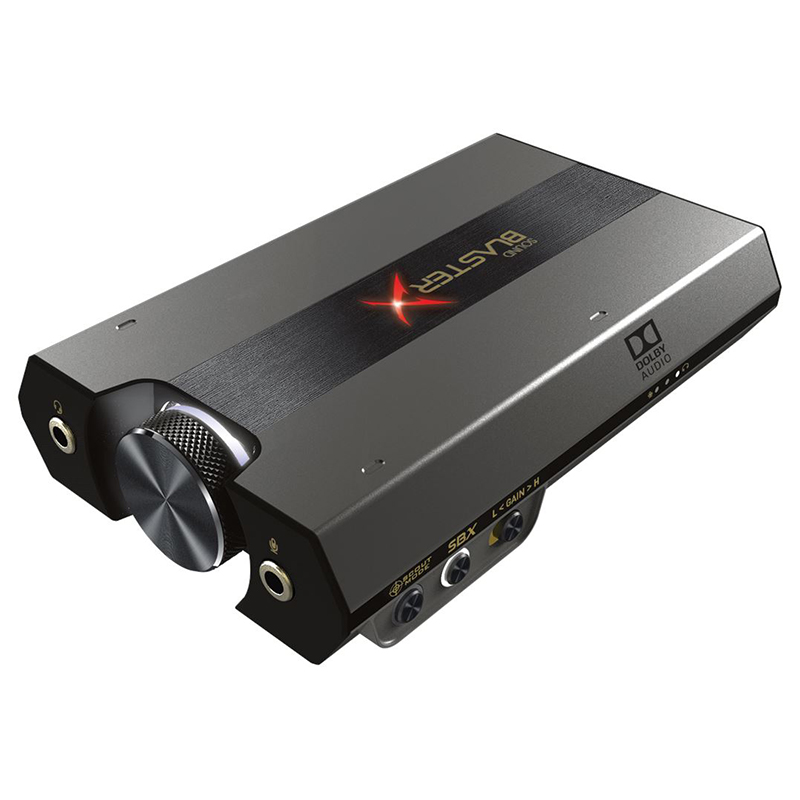

Sound BlasterX G6
1 x Optical Cable
1 x USB-C Cable
Quick Start Leaflet
Warranty Leaflets
