SPECIFICATIONS:
GENERAL DATA
Model

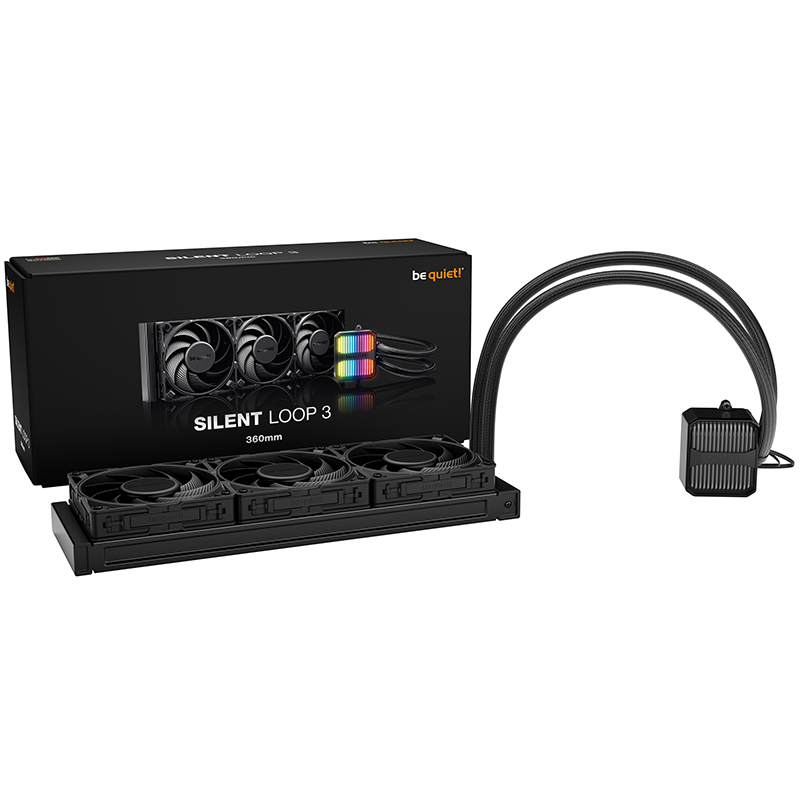

Silent Loop 3 360mm
Color option
Black
Dimensions radiator, incl. fan (H x W x D), (mm)
397 x 120 x 52
Dimensions cooling block (H x W x D), (mm)
93.5 x 80 x 56
Total weight (kg)
1.77
Socket compatibility Intel
1851 / 1700 / 1200 / 1150 / 1151 / 1155
Socket compatibility AMD
AM5 / AM4 / TR5 / TR4
Noise level (dB(A)) at 50% / 75% /100% rpm
19.8 / 31.9 / 38.8
Number of fans
3
Lighting connector
3 Pin 5V Addressable
Tube length (mm)
400
Refill port
✓
PUMP SPECIFICATIONS
Pump speed (rpm)
3500
Pump adjustable (rpm)
1700 - 3500
Pump connector
4-pin PWM
RADIATOR SPECIFICATIONS
Dimensions (L x W x H), (mm)
397 x 120 x 27
Radiator material / finish
aluminum / black spray painted
Base material / finish
copper / nickel plating
FAN SPECIFICATIONS
Fan model
Silent Wings 4 120mm PWM
Fan dimensions (mm)
120 x 120 x 25
Speed at 100% PWM (rpm)
2500
Airflow at 100% PWM / 12V (CFM / m3/h)
76,7 / 130.3
Air Pressure at 100% PWM / 12V (mm H2O)
3.96
Bearing technology
FDB
Motor technology
6-pole fan motor
Rated Voltage (V)
12
Input current (A)
0.30
Safety current (A)
0.40
Input power (W)
3.6
Connector
Cable length (mm)
500
Lifespan (h / 25°C)
300,000
ACCESSORIES
Thermal grease (Type)
Included
Mounting set
Intel, AMD
Adapter cables
Y-cable
Bottle of coolant (ml)
✓ / 100
User manual languages
CN, DE, EN, ES, FR, JP, PL, RU, TW, UA
SAFETY CERTIFICATIONS
Approvals
CE, FCC, UKCA
ENVIRONMENTAL DIRECTIVES
RoHS
WEEE
Triman
