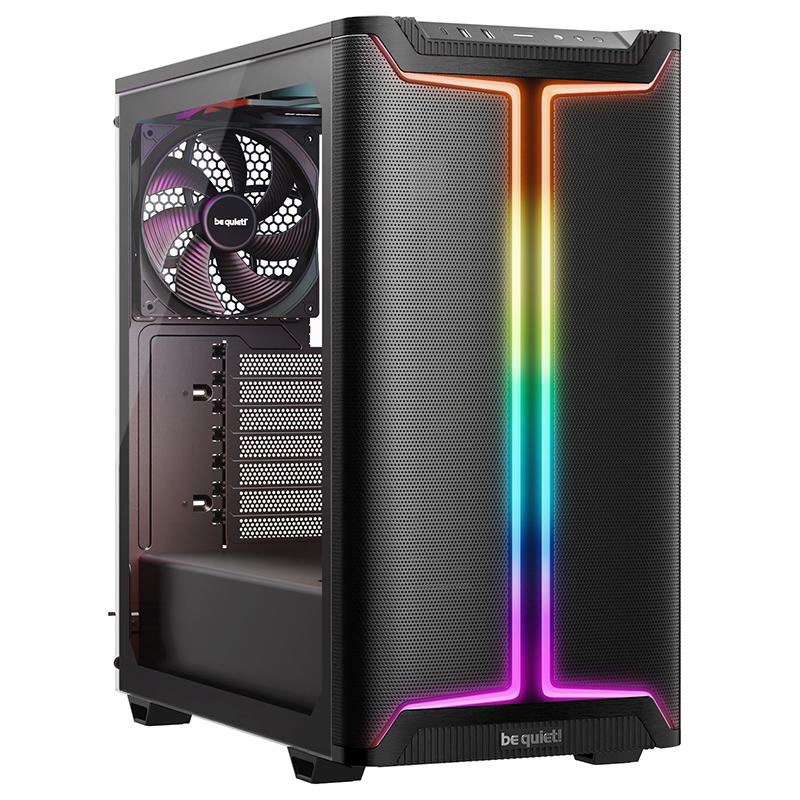

be Quiet! Pure Base 501 DX ATX Case (BGW76)

Model

Pure Base 501 DX Black

Color option

Black

Motherboard compatibility

ATX / M-ATX / Mini-ITX

Case size excl. stands (L x W x H), (mm)

450 x 231 x 449

Case size incl. stands (L x W x H), (mm)

450 x 231 x 463

Volume (l)

39.2

PSU form factor

ATX PS/2

Net weight (kg)

7.8

Expansion slots

7

PRE-INSTALLED FANS

Fan at top

1x Pure Wings 3 140mm PWM

Fan at front

1x Pure Wings 3 140mm PWM

Fan at rear

1x Pure Wings 3 140mm PWM

Dimensions (L x W x H), (mm)

140 x 25 x 140

Fan speed at 100% PWM / 12V (rpm)

1200

Airflow at 100% PWM / 12V (CFM / m3/h)

57.4 / 97.5

Air Pressure at 100% PWM / 12V (mm H2O)

0.96

Noise level at 100% PWM / 12V (dB(A))

21.9

Voltage range (V DC)

5 - 13.2

Input power (W)

3.6

Input current (A)

0.06

Connector

4-pin PWM

Lifespan (h / 25°C)

80,000

MAXIMUM FAN INSTALLATION

Maximum fans

6

Top (mm)

2x 140 / 2x 120

Front (mm)

2x 140 / 3x 120

Rear (mm)

1x 140 / 1x 120

OPTIONAL RADIATOR INSTALLATION

Top (mm)

120 / 240

Front (mm)

120 / 140 / 240 / 280 / 360

Rear (mm)

120 / 140

PSU COMPATIBILITY

Maximum dimensions excl. bottom fan (mm)

200

Maximum dimensions incl. bottom fan (mm)

180

GRAPHICS CARD

HDD cage (in height of graphics card) installed (mm)

368

HDD cage (in height of graphics card) removed (mm)

368

Maximum PCIe slots with vertical graphics card (pcs.)

5

DRIVE BAY CAPACITY

3.5 slots (scope of delivery)

2

3.5 slots (max.)

2

2.5 slots (scope of delivery)

5

2.5 slots (max.)

5

I/O PANEL

USB 3.2 Gen. 2 Type C

1

USB 3.2 Type A

2

HD Audio I/O

Mic + Audio

INSULATION AND DAMPING

Side panel insulation mats

✓

Anti-vibration decoupled HDD

✓

Anti-vibration decoupled PSU

✓

SCOPE OF DELIVERY

Screw set (Drives/Motherboard)

✓

Additional standoffs (pcs.)

1

LED strips (pcs.)

2

Cable ties (pcs.)

12

REMOVEABLE DUST FILTERS

Top

1

Front

1

Bottom

1

MATERIAL

Top cover

Steel

Front panel

ABS

Side panel

Steel

Side panel window

Glass

Stands

ABS

SAFETY CERTIFICATION

Approvals

CE, UKCA

ENVIRONMENTAL DIRECTIVES

RoHS

✓

WEEE

✓

Triman

✓
