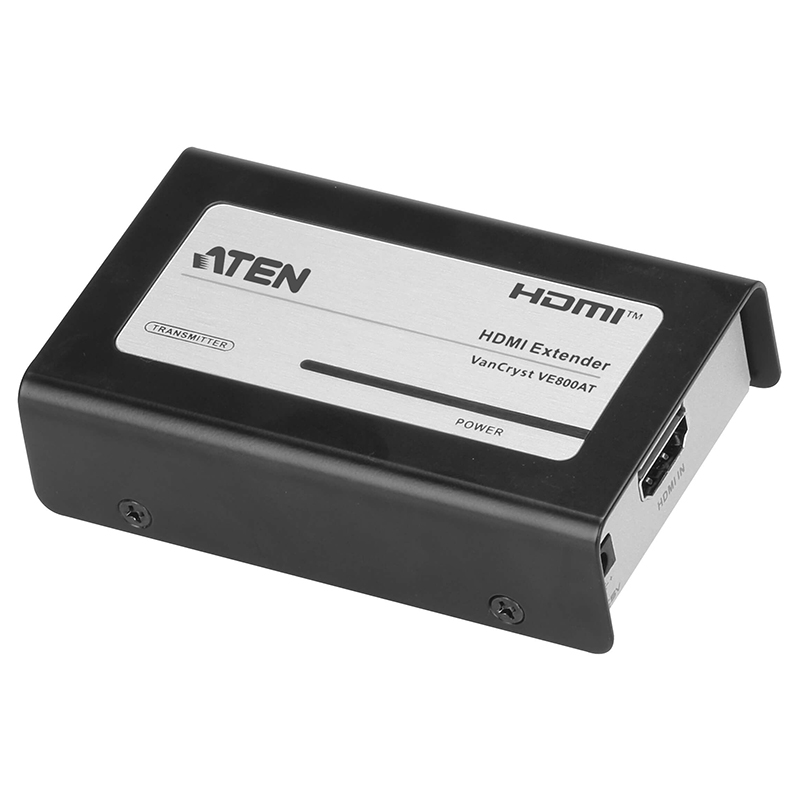

Aten VanCryst HDMI Over Cat5 Video Extender with Audio - 1920x1200@60Hz or 60m Max(VE800A-AT-U)

VIDEO OUTPUT

Interfaces

1 x HDMI Type A Female (Black)

N/A

Impedance

100   Ω

N/A

Max. Distance

3 m

N/A

VIDEO INPUT

Impedance

N/A

100 Ω

Interfaces

N/A

1 x HDMI Type A Female (Black)

Max. Distance

N/A

3 m

VIDEO

Max. Data Rate

6.75 Gbps (2.25 Gbps Per Lane)

6.75 Gbps (2.25 Gbps Per Lane)

Max. Pixel Clock

225 MHz

225 MHz

Compliance

HDMI (3D, Deep Color)
HDCP Compatible

HDMI (3D, Deep Color)
HDCP Compatible

Max. Resolutions / Distance

Up to 1080p@40m; 1080i@60m

Up to 1080p@40m; 1080i@60m

AUDIO

Output

1 x HDMI Type A Female (Black)

N/A

Input

N/A

1 x HDMI Type A Female (Black)

CONNECTORS

Power

1 x DC Jack

1 x DC Jack

Power Consumption

DC5V:0.61W:3BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the   device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

DC5V:0.9W:4BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

ENVIRONMENTAL

Operating Temperature

0 - 50°C

0 - 50°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

PHYSICAL PROPERTIES

Housing

Metal

Metal

Weight

0.16 kg ( 0.35 lb )

0.16 kg ( 0.35 lb )

Dimensions (L x W x H)

9.00 x 5.50 x 2.20 cm
(3.54 x 2.17 x 0.87 in.)

9.00 x 5.50 x 2.20 cm
(3.54 x 2.17 x 0.87 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

OTHERS

Package Contents

1x VE800AT HDMI Extender

1x VE800AR HDMI Extender

2x Power Adapters

1x Mounting Kit

1x User Instructions
