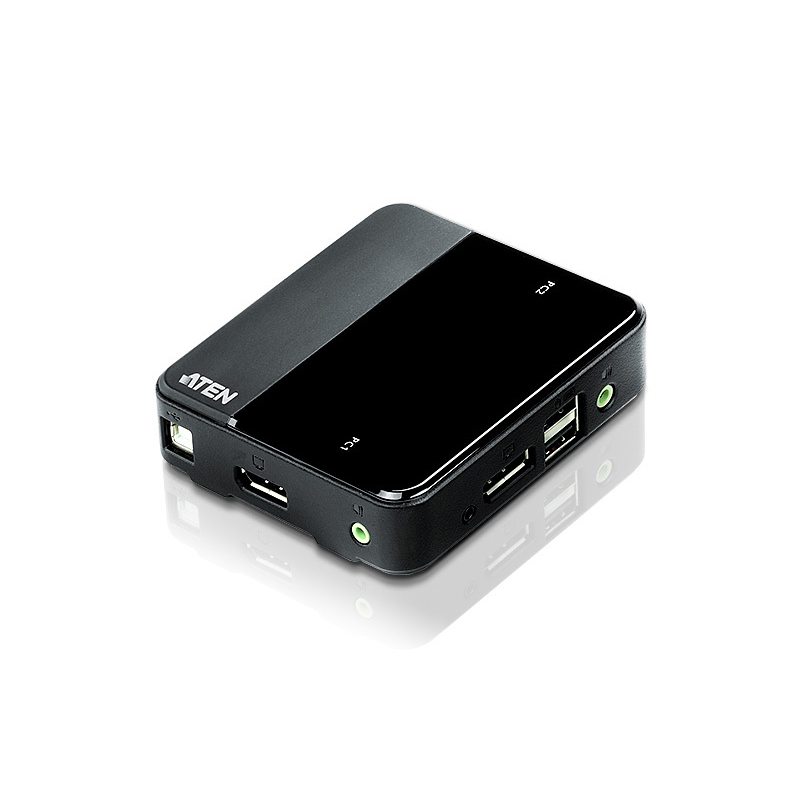

Aten 2 Port USB 2.0 DisplayPort 4K KVM Switch (CS-782DP)

Aten 2 Port USB 2.0 DisplayPort 4K KVM Switch (CS-782DP)
  • 50121_thumb_P_1552527298045
  • 50121_thumb_P_1552527312811
  • 50121_thumb_P_1552527312954
  • 50121_thumb_P_1552527312705
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is back in stock?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Aten 2 Port USB 2.0 DisplayPort 4K KVM Switch (CS-782DP)
  • Model Number:
    CS782DP-AT
  • Brand:
  • Warranty Period:
    2 Year

Description

Aten 2 Port USB 2.0 DisplayPort 4K KVM Switch (CS-782DP)


  • Superior video quality – 4K UHD (3840 × 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)

  • Computer selection via remote port selector, hotkeys, and USB mouse; bus-powered design

  • Supports MST (Multi-Stream Transport), enabling multiple monitors to be used via a single DisplayPort connector

  • Supports DisplayPort Dual - Mode (DP++) for directly outputting single-link HDMI and / or DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter




Specifications


Computer Connections2
Port SelectionHotkey, Mouse, Remote Port Selector
Connectors
Console Ports2 x USB Type A Female
1 x DisplayPort  Female (Black)
1 x 3.5mm Audio Jack Female (Green)
KVM (Computer) Ports2 x USB Type B Female
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green)
Remote Port Selector1 x 2.5mm Audio Jack Female
LEDs
KVM2 (White)
Emulation
Keyboard / MouseUSB
Video4096 x 2160 @ 60Hz
Scan Interval3, 5, 10, 20 seconds (Default: 5 seconds)
Power ConsumptionDC 5V, 4W
Environmental
Operating Temperature0 – 50°C
Storage Temperature–20 – 60°C
Humidity0 - 80% RH, Non-condensing
Physical Properties
HousingPlastic
Weight0.12 kg ( 0.26 lb )
Dimensions (L x W x H)9.37 x 9.30 x 2.68 cm
(3.69 x 3.66 x 1.06 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.


Package Contents

  • 1x CS782DP 2-Port USB DisplayPort KVM Switch

  • 2x DisplayPort 1.2 Cable (1.5m/5ft)

  • 2x USB Cable (USB-A to USB-B; 1.8m/6ft)

  • 2x Audio Cable (1.8m/6ft)

  • 1x Remote Port Selector

  • 1x User Instructions
