SPECIFICATIONS:
CPU
CPU Model: Intel Celeron N5105
CPU Architecture: x64 64-bit
CPU Frequency: Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory
Memory: 4GB SO-DIMM DDR4
Memory Module Pre-installed: 4GB (1 x 4GB)
Total Memory Slots: 2
Memory Expandable up to: 16GB (2 x 8GB)
*Support mixed capacity
Flash Memory: 8GB eMMC
Storage
Storage not includedDrive Bays: 2
M.2 Drive Slots: 4
Compatible Drive Type:
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe
M.2 PCIe Interface: PCIe 3.0 x1
Maximum Drive Bays with Expansion Unit: 10
Supports Hot Swappable Drives: ✓
External Ports
Expansion:
2 x USB 3.2 Gen 2 ( 10Gbps ) Type-A
1 x USB 2.0 Type-A
Network: 2 x 5 Gigabit Ethernet (5G/2.5G/1G/100M)
Multimedia Output: 1 x HDMI 2.0b
Others
System Fan: 1 x 70mm
Infrared Receiver: ✓
Power Supply Unit / Adapter: 65W x1
Input Power Voltage: 100V to 240V AC
Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Operation
Power Consumption:
21 W (Operation);
13.5 W (Disk Hibernation);
0.79 W (Sleep Mode)
Noise Level: 17.7dB (HDD idle)
Operation Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -20°C~70°C (-4°F~158°F)
Humidity: 5% to 95% RH
Size and Weight
Size: 163.5 (H) x 108 (W) x 230 (D) mm
Weight: 2 kg / 4.4 lb
Package Weight: 3.18 kg / 7.01 lbs
Package Size: 304(H) x285(W) x195(D) mm
Package Contents

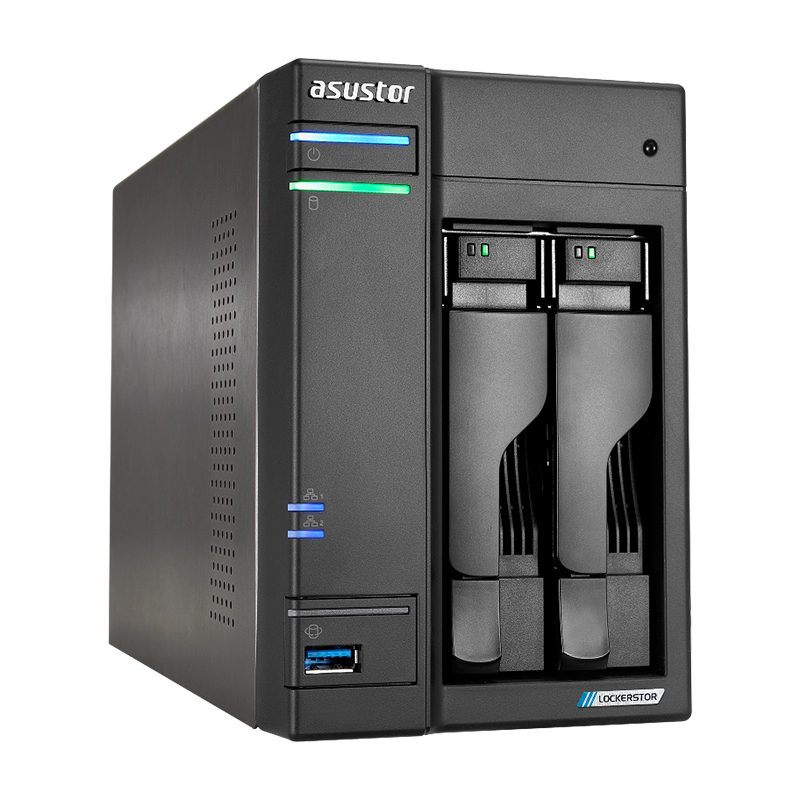

AS6702T v2 Unit x1
Quick Installation Guide
AC Power Cord x1
AC Power Adapter x1
RJ-45 LAN Cable(Cat 5e) x2
Flat Head Screw (for 3.5" HDD) x8
Flat Head Screw (for 2.5" HDD) x8
