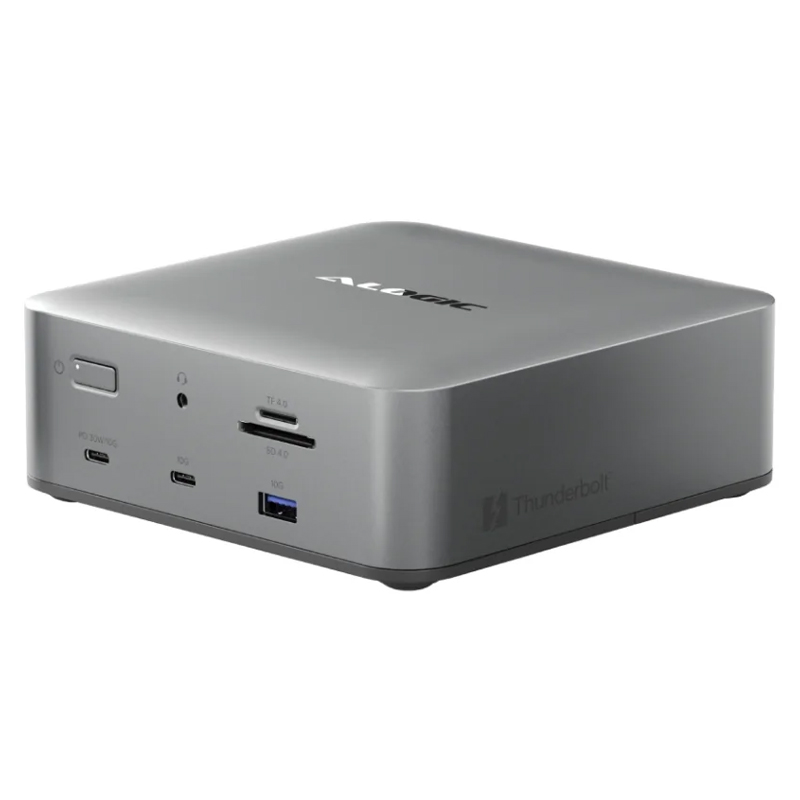

Alogic FlashDock 5 13-in-1 Thunderbolt 5 Docking Station with SSD Support (TB5D3-SSD)

Colour

Space Grey and Black

Weight (product)

870g

Materials

ABS

Inputs

1 x Thunderbolt 5 port for connection to a computer

May be used with non-Thunderbolt computers that support USB-C DisplayPort   Alternate for connection of up to 2 displays.

Outputs

1x Thunderbolt™ 5 Downstream Port40Gbps | 1x 8K / 2x 4K 60Hz Max

2x HDMI 2.1 (max 7680x4320 60Hz)

1x USB-C 3.2 Gen 2 (10G) with 30W PD for device charging

1x USB-C 3.2 Gen 2 (10G)

1x USB-A 3.2 Gen 2 (10G)

2x USB-A 3.2 Gen 1 (5G)

1x 3.5mm Combo Audio / Microphone Jack (384kHz)

1x RJ45 Ethernet 2.5Gbps

1x SD Card Reader (SD 4.0 / UHS-II - 312Mbps)

1x Micro SD/TF Card Reader (SD 4.0 / UHS-II - 312Mbps)

1x M.2 (NVMe PCIe Gen4x4, Max 6000MB/s)

SSD Support

Supports M.2 NVMe PCIe SSDs with M key and B+M keyed connectors (M keyed/SATA drives not supported).

PCIe Gen4x4, 6000MB/s max read/write speed.

Supports 2280, 2260, 2242, 2230 sized drives.

NB: Drives with wrap around heatsinks are not recommended due to clearance   constraints underneath the SSD. If considering installing a drive with a heatsink in this docking station, check the dimensions carefully before purchasing the drive.

(Heat spreaders on the top side of drives should not cause any installation   issues).

Charging

Docking station provides up to 140W of power to connected hosts that support USB-C Power Delivery.

· Computers with PD 3.0 SPR charging support: Up to 20V⎓4.8A/96W

· Computers with PD 3.1 EPR charging support: Up to 28V⎓5A/140W

Supports dynamic power allocation to distribute power to the connected laptop and   peripherals according to real time demand.

Video Resolution

Up to 3x 4K or 2x 8K independent video outputs dependent on the capabilities of the connected computer.

*See resolution support tables for maximum outputs for computers with differing   capabilities

Audio Support

Analogue audio stereo output plus mono microphone/line in

Supports 24/32-bit, 44.1/48/96/192/384KHz sample rates

Automatic CTIA/OMTP mode detection and switching

Power Adapter

Supplied with 21V⎓8.57A, 180W power adapter and 4x mains power leads to suit AU/NZ, EU, UK and US power outlets.

Power Adapter Input Voltage: 100-240VAC

Mains Supply Frequency: 50-60 Hz

Package Includes

1 x FlashDock 5 Docking Station

1 x 80cm Thunderbolt 5 USB-C Cable

1 x 180W Power Adapter

4 x 1m Power Cables (AU/EU/UK/US)

1 x User Manual

Device Compatibility

Windows, MacOS, ChromeOS Computers

Some feature limitations apply when used with computers that do not support   Thunderbolt 5. The limitations may include reduced speeds, a reduced number of supported displays and SSD storage not being available to the computer.

Refer to the Feature Availability for non-Thunderbolt 5 Computers section below for   an indication of the features that may be affected for different types of computer.

Environmental

Operating Temperature: 0-35°C

Storage Temperature: -10-60°C

Operating Humidity: 10-80%

Storage Humidity: 5-90% (RH, no condensation)

Compliance

Intel Thunderbolt, FCC, CE, RCM, RoHS
