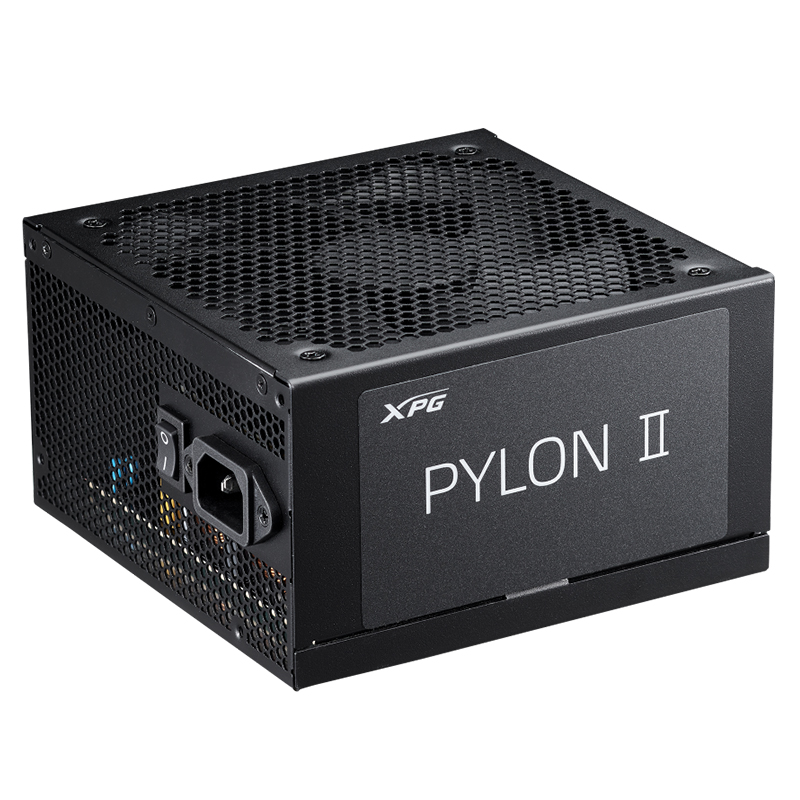

ADATA XPG Pylon II 650W 80+ Bronze Non-Modular ATX 3.1 Power Supply (PYLONII650B-BKCAU)
Compact 150×150×86 mm PSU, 80 Plus Bronze, ATX v3.1. 0.99 PFC, 100‑240 V/10 A, 50‑60 Hz. Protections: OVP/OPP/SCP/OCP/UVP/OTP/NLO/SIP. 1527 W peak, +5V/3.3V/12V/‑12V/5Vsb outputs (20/20/54/0.3/3 A). 135 mm FDB fan 2300 RPM, MTBF 100k h, 1.8 kg.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Dimensions (L x W x H)
150 x 150 x 86 mm
80 Plus Rating
BRONZE
ATX Version
Intel ATX v3.1
Protections
OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP
PFC
0.99
Input Voltage
100-240V
Input Current
10A
Input Frequency
50-60Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
+5V/+3.3V: 20A, +12V: 54A, -12V: 0.3A, +5Vsb: 3A
Power Excursion
1527W (up to 235% of PSU’s rated power for 100µs)
Operating Temperature
50°C
Fan Size
135mm
Fan Bearing
FDB (Fluid Dynamic Bearing)
Fan Speed
2300±10 RPM
MTBF
100,000 hours at 25℃
ATX 24 Pin Connector
1
EPS 8 Pin Connector
2
Molex 4 Pin Connector
2
12V-2x6 / 12VHPWR Connectors (450W)
1
SATA Connector
6
Weight
1.8 kg
Product Name:
ADATA XPG Pylon II 650W 80+ Bronze Non-Modular ATX 3.1 Power Supply (PYLONII650B-BKCAU)
