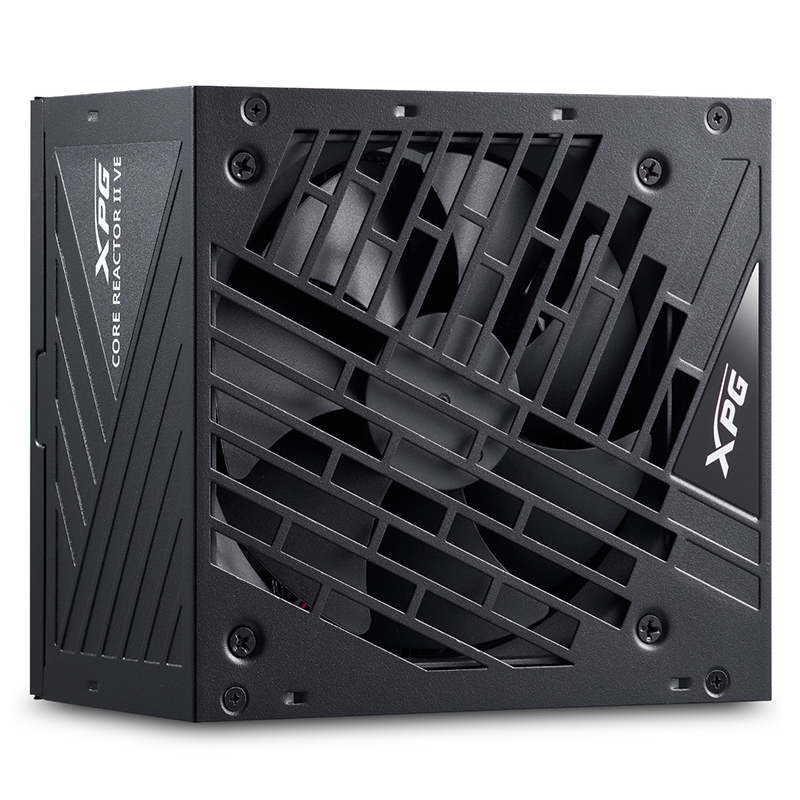

ADATA XPG 750W Core Reactor II VE 80+ Gold Modular ATX 3.1 Power Supply (COREREACTORIIVE750G-BKCAU)
Compact 140×150×86 mm PSU, 80 Plus Gold, Intel ATX 12V v3.1. 0.99 PFC, 100‑240 V input, 1762 W peak (235% for 100 µs). Outputs: +5V/+3.3V 22 A, +12V 62.5 A, -12V 0.3 A, +5Vsb 3 A. 120 mm FDB fan 2400 RPM, 100k h MTBF, full OVP/OPP/SCP/OCP/UVP/OTP/NLO/SIP protection.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Dimensions (L X W X H)
140 x 150 x 86mm
Cybenetics Rating
GOLD
80 Plus Rating
GOLD
ATX Version
Intel ATX 12V v3.1
Protections
OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP
Certification
CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus
PFC
0.99
Input Voltage
100-240V
Input Current
10A
Input Frequency
47Hz-63Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
+5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
Power Excursion
1762W (*up to 235% of the PSU's rated power for 100μs)
Operating Temperature
40°C
Fan Size
120mm FDB Fan
Fan Bearing
FDB (Fluid Dynamic Bearing)
Fan Speed
2400 RPM
MTBF
100K hours at full load
ATX 24 PIN Connector
1
EPS 8 PIN Connector
2
PCI-E 6+2 PIN Connector
3
MOLEX 4 PIN Connector
2
12V-2X6 (12+4) Connector (600W)
1
SATA Connector
6
Weight
Product + Cables: 1450g+1350g with Package: 3.03kg
Product Name:
ADATA XPG 750W Core Reactor II VE 80+ Gold Modular ATX 3.1 Power Supply (COREREACTORIIVE750G-BKCAU)
