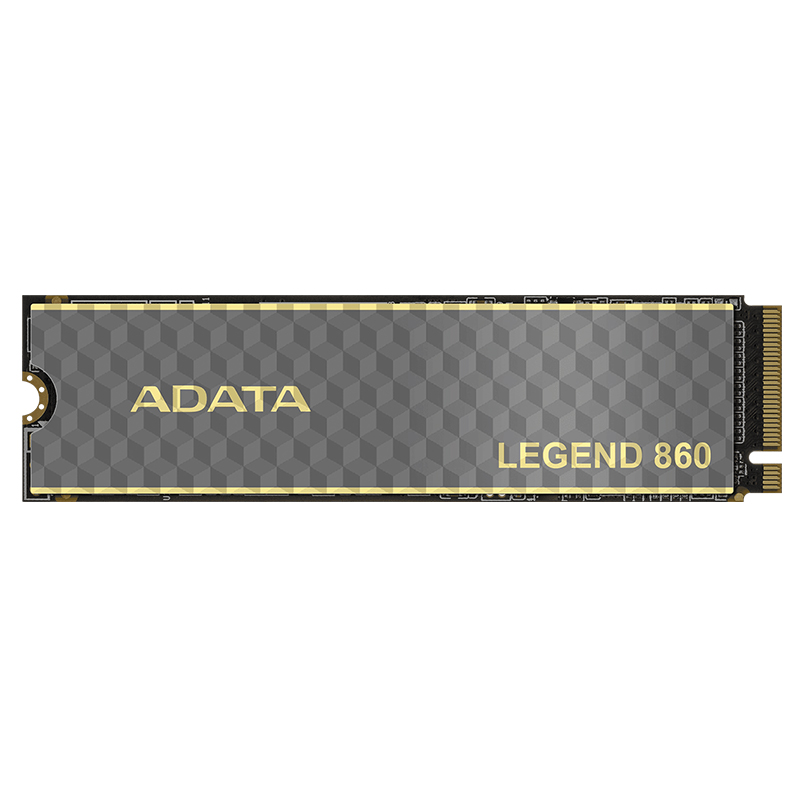

500 GB M.2 2280 SSD with 3D NAND, PCIe Gen4 x4 interface delivering up to 6,000 MB/s read and 5,000 MB/s write. Operates 0‑70 °C, MTBF 2 M hrs, TBW 640 TB. Compatible with latest Intel/AMD platforms; PCIe 3.0 fallback 3,400/3,000 MB/s.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.
SPECIFICATIONS:
Capacity
500GB
Form Factor
M.2 2280
NAND Flash
3D NAND
Dimensions ( L x W x H )
80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (w/ heat sink)
80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (w/o heat sink)
Weight
9.5g / 0.33oz (w/ heat sink)
6.5g / 0.23oz (w/o heat sink)
Interface
PCIe Gen4 x4
Sequential Read (Max*)
Up to 6,000MB/s (PC/Laptop)*
Sequential Write (Max)
Up to 5,000MB/s*
Operating Temperature
0°C - 70°C
Storage Temperature
-40°C - 85°C
Shock Resistance
1,500G/0.5ms
MTBF
2,000,000 hours
Terabytes Written (TBW)(Max Capacity*)
640TB**
Remark
*This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 4.0 to achieve optimal performance. Actual performance may vary depending on the hardware and software configurations.
*This product is backward compatible with PCIe 3.0. If a third-generation PCIe motherboard is used, this product will be able to achieve sequential read/write speeds of 3400/3000MB per second.
