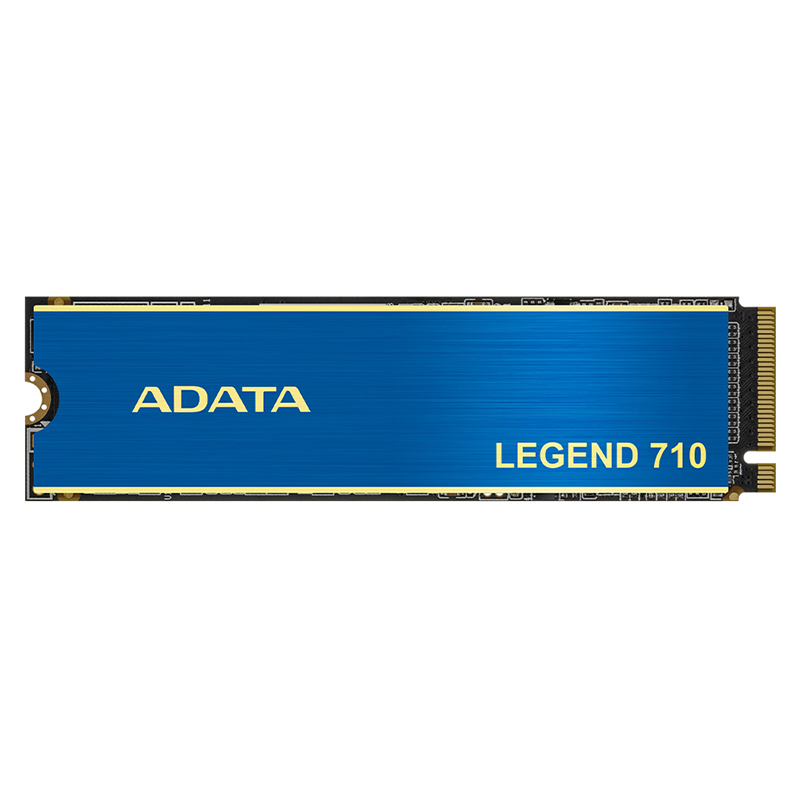

ADATA 256GB LEGEND 710 ALEG-710-256GCS PCIe Gen3 x4 M.2 2280 SSD

Form Factor

M.2 2280

NAND Flash

3D NAND

Controller

RTS5766DL

Dimensions ( L x W x H )

80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (with heat sink)
80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink)

Weight

9g / 0.32oz (with heat sink)
6.2g / 0.22oz (without heat sink)

Interface

PCIe Gen3 x4

User Type

Creator

Sequential Read (Max*)

Up to 2,400MB/s*

Sequential Write (Max)

Up to 1,800MB/s*

4KB Random Read IOPS(Max*)

Up to 200K*

4KB Random Write IOPS(Max*)

Up to 150K*

Operating Temperature

0°C - 70°C

Storage Temperature

-40°C - 85°C

Shock Resistance

1500G/0.5ms

MTBF

1,500,000 hours

Terabytes Written (TBW)(Max Capacity*)

520TB**

Remark

* Performance may vary based on SSD capacity, host hardware and software,   operating system, and other system variables.

** The value is the minimum amount of terabyte written that could be reached.

*** The SSD is based on the TBW or Warranty period. Visit https://www.adata.com/us/support/warranty/ for more details.
